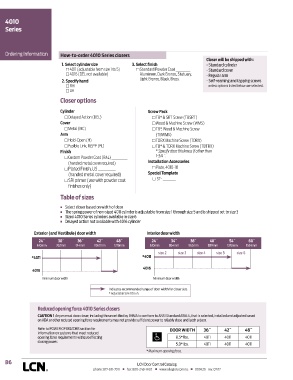

4010
Series

Ordering Information How-to-order 4010 Series closers
Closer will be shipped with:
1. Select cylinder size 3. Select finish - Standard cylinder
4011 (adjustable from size 1 to 5) Standard Powder Coat __________ - Standard cover
4016 (DEL not available) Aluminum, Dark Bronze, Statuary, - Regular arm
2. Specify hand Light Bronze, Black, Brass. - Self-reaming and tapping screws
RH unless options listed below are selected.
LH
Closer options

Cylinder Screw Pack
Delayed Action (DEL) TB* & SRT Screw (TBSRT)
Cover Wood & Machine Screw (WMS)
Metal (MC) TB*, Wood & Machine Screw
Arm (TBWMS)
Hold-Open (H) TORX Machine Screw (TORX)
Fusible Link, 165°F (FL) TB* & TORX Machine Screw (TBTRX)
Finish * Specify door thickness if other than
Custom Powder Coat (RAL) ___________ 1-3/4˝.
(handed metal cover required) Installation Accessories
Plated Finish, US ___________ Plate, 4010-18
(handed metal cover required) Special Template
SRI primer (use with powder coat ST- _________
finishes only)
Table of sizes

n Select closer based on width of door
n The spring power of non-sized 4011 cylinder is adjustable from size 1 through size 5 and is shipped set to size 3
n Sized 4010 Series cylinders available in size 6
n Delayed action not available with 4016 cylinder

Exterior (and Vestibule) door width Interior door width
24˝ 30˝ 36˝ 42˝ 48˝ 24˝ 34˝ 38˝ 48˝ 54˝ 60˝
610mm 762mm 914mm 1067mm 1219mm 610mm 864mm 965mm 1219mm 1372mm 1524mm
size 2 size 3 size 4 size 5 size 6
*4011 *4011

4016
4016
minimum door width Minimum door width

Indicates recommended range of door width for closer size.
* Adjustable Size 1 thru 5.

Reduced opening force 4010 Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for DOOR WIDTH 36˝ 42˝ 48˝
information on systems that meet reduced
opening force requirements without effecting 8.5* lbs. 4011 4011 4011
closing power.
5.0* lbs. 4011 4011 4011
* Maximum opening force.

B6 LCN Door Control Catalog
