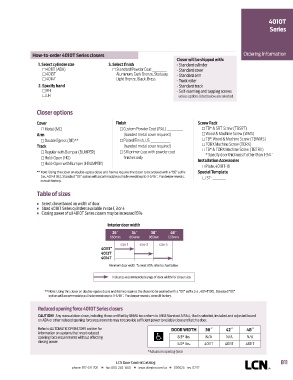

4010T
Series

How-to-order 4010T Series closers Ordering Information
Closer will be shipped with:
1. Select cylinder size 3. Select finish - Standard cylinder
4011T (ADA) Standard Powder Coat __________ - Standard cover
4013T Aluminum, Dark Bronze, Statuary, - Standard arm
4014T Light Bronze, Black, Brass. - Track roller
2. Specify hand - Standard track
RH - Self-reaming and tapping screws
LH unless options listed below are selected.

Closer options

Cover Finish Screw Pack
Metal (MC) Custom Powder Coat (RAL) ___________ TB* & SRT Screw (TBSRT)
Arm (handed metal cover required) Wood & Machine Screw (WMS)
Double Egress (DE)** Plated Finish, US ______________ TB*, Wood & Machine Screw (TBWMS)
Track (handed metal cover required) TORX Machine Screw (TORX)
Regular with Bumper (BUMPER) SRI primer (use with powder coat TB* & TORX Machine Screw (TBTRX)
* Specify door thickness if other than 1-3/4˝
Hold-Open (HO) finishes only Installation Accessories
Hold-Open with Bumper (HBUMPER)
Plate, 4010T-18
** Note: Using this closer on double-egress doors and frames requires the closer to be ordered with a “DE” suffix Special Template
(i.e., 4014T DE). Standard “DE” option will accommodate pull side reveals up to 3-5/16˝. For deeper reveals, ST- _________
consult factory.

Table of sizes
n Select closer based on width of door
n Sized 4010T Series cylinders available in size 1, 3 or 4
n Closing power of all 4010T Series closers may be increased 15%

Interior door width
26˝ 34˝ 38˝ 48˝
660mm 864mm 965mm 1219mm
size 1 size 3 size 4
4011T *
4013T
4014T
Minimum door width. To meet ADA, refer to chart below.

Indicates recommended range of door width for closer size.

** Note: Using this closer on double-egress doors and frames requires the closer to be ordered with a “DE” suffix (i.e., 4014T DE). Standard “DE”
option will accommodate pull side reveals up to 3-5/16˝. For deeper reveals, consult factory.

Reduced opening force 4010T Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to AUTOMATIC OPERATORS section for DOOR WIDTH 36˝ 42˝ 48˝
information on systems that meet reduced
opening force requirements without effecting 8.5* lbs. N/A N/A N/A
closing power.
5.0* lbs. 4011T 4011T 4011T
* Maximum opening force.

LCN Door Control Catalog B11
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
