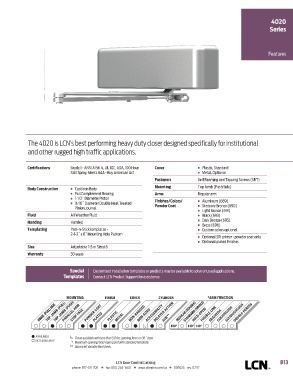

4020
Series

Features

The 4020 is LCN’s best performing heavy duty closer designed specifically for institutional
and other rugged high traffic applications.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Cover n Plastic, Standard
Salt Spray, Meets BAA - Buy American Act n Metal, Optional
Fasteners Self Reaming and Tapping Screws (SRT)
Body Construction n Cast Iron Body Mounting Top Jamb (Push Side)
n Full Complement Bearing Arms Regular arm
n 1-1/2˝ Diameter Piston Finishes/Colors/ n Aluminum (689)
n 11/16˝ Diameter Double Heat Treated Powder Coat n Statuary Bronze (690)
Pinion Journal
n Light Bronze (691)
Fluid All Weather Fluid n Black (693)
n Dark Bronze (695)
Handing Handed
n Brass (696)
Templating Peel-n-Stick templates - n Custom colors optional
2-1-2˝ x 6˝ Mounting Hole Pattern
n Optional SRI primer - powder coat only
n Optional plated finishes
Size Adjustable 1-5 or Sized 6
Warranty 30 years

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
STANDARD (SINGLE)
TOP JAMB (PULL)
DELAYED ACTION
SCUSH/SHCUSH
HINGE (PULL) SIDE TOP JAMB (PUSH) STOP FACE POWDER COAT PLASTIC METAL NON-HANDED ACCESSIBILITY AVB** REGULAR (DOUBLE) HOLD-OPEN FUSIBLE LINK CUSH/HCUSH DOUBLE EGRESS
PARALLEL ARM
NON-SIZED
EDA/HEDA
PLATED
180° 140° 140°
AVAILABLE Closer available with less than 5.0 lbs. opening force on 36˝ door.
NOT AVAILABLE
* Maximum opening/hold-open point with standard template.
** Advanced Variable Backcheck.

LCN Door Control Catalog B13
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
