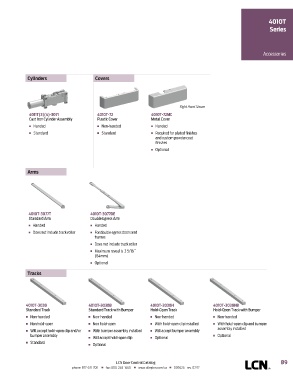

4010T
Series

Accessories

Cylinders Covers

Right Hand Shown
4011T(3)(4)-3071 4010T-72 4010T-72MC
Cast Iron Cylinder Assembly Plastic Cover Metal Cover
n Handed n Non-handed n Handed
n Standard n Standard n Required for plated finishes
and custom powder coat
finishes
n Optional

Arms

4010T-3077T 4010T-3077DE
Standard Arm Double Egress Arm
n Handed n Handed
n Does not include track roller n For double egress doors and
frames
n Does not include track roller
n Maximum reveal is 3 5/16˝
(84mm)
n Optional
Tracks

4010T-3038 4010T-3038B 4010T-3038H 4010T-3038HB
Standard Track Standard Track with Bumper Hold-Open Track Hold-Open Track with Bumper
n Non-handed n Non-handed n Non-handed n Non-handed
n Non hold-open n Non hold-open n With hold-open clip installed n With hold-open clip and bumper
n Will accept hold-open clip and/or n With bumper assembly installed n Will accept bumper assembly assembly installed
bumper assembly n Optional
n Will accept hold-open clip n Optional
n Standard
n Optional

LCN Door Control Catalog B9
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
