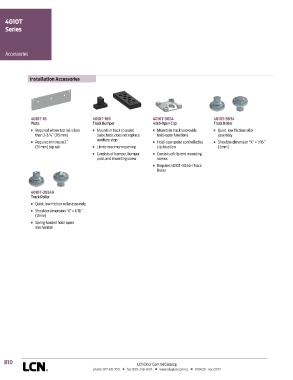

4010T
Series

Accessories

Installation Accessories

4010T-18 4010T-169 4010T-3054 4010T-3034
Plate Track Bumper Hold-Open Clip Track Roller
n Required where top rail is less n Mounts in track to assist n Mounts in track to provide n Quiet, low friction roller
than 3-3/4˝ (95 mm) backcheck, does not replace hold-open function) assembly
auxiliary stop
n Requires minimum 2˝ n Hold-open point controlled by n Shoulder dimension “X” = 1/16˝
(51 mm) top rail n Limits maximum opening clip location (2mm)
n Consists of bumper, bumper n Consists of clip and mounting
post, and mounting screw screws
n Requires 4010T-3034H Track
Roller

4010T-3034H
Track Roller
n Quiet, low friction roller assembly
n Shoulder dimension “X” = 1/16˝
(2mm)
n Spring-loaded hold-open
mechanism

B10 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
