4010T
Series

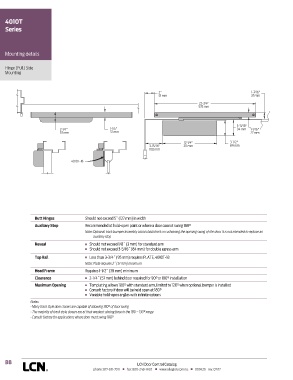

Mounting details

Hinge (Pull) Side
Mounting

2" 1-7/16"
51 mm 37 mm
22-3/4"
578 mm

3-11/16"
2-1/4" 1-1/4" 94 mm 1-1/16"
57 mm 32 mm 27 mm

12-1/4" 3-1/2"
3-15/16" 311 mm 89 mm
100 mm

4010T-18

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Note: Optional track bumper assembly assists backcheck in cushioning the opening swing of the door. It is not intended to replace an
auxiliary stop
Reveal n Should not exceed 1/8˝ (3 mm) for standard arm
n Should not exceed 3-5/16˝ (84 mm) for double egress arm
Top Rail n Less than 3-3/4˝ (95 mm) requires PLATE, 4010T-18
Note: Plate requires 2˝ (51 mm) minimum
Head Frame Requires 1-1/2˝ (38 mm) minimum
Clearance n 2-1/4˝ (57 mm) behind door required for 90° or 180° installation
Maximum Opening n Templating allows 180° with standard arm, limited to 120° when optional bumper is installed
n Consult factory if door will be held open at 180°
n Variable hold-open angles with infinite options
Notes:
• Many track style door closers are capable of allowing 180° of door swing
• The majority of track style closers are at their weakest closing force in the 180 – 130° range
• Consult factory for applications where door must swing 180°

B8 LCN Door Control Catalog
