4010
Series

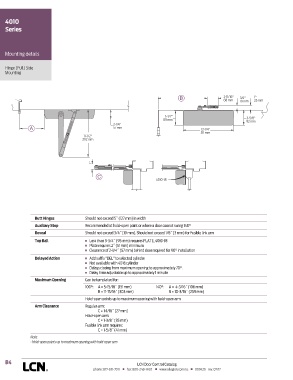

Mounting details

Hinge (Pull) Side
Mounting

2-11/16" 1"
B 68 mm 3/4" 25 mm
19 mm

3-1/2" 3-5/8"
89 mm 92 mm
2-1/4"
A 57 mm 12-1/4"
311 mm
11-1/2"
292 mm

C
4010-18

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 140°
Reveal Should not exceed 3/4˝ (19 mm). Should not exceed 1/8˝ (3 mm) for Fusible link arm
Top Rail n Less than 3-3/4˝ (95 mm) requires PLATE, 4010-18
n Plate requires 2˝ (51 mm) minimum
n Clearance of 2-1/4˝ (57 mm) behind door required for 90° installation
Delayed Action n Add suffix “DEL” to selected cylinder
n Not available with 4016 cylinder
n Delays closing from maximum opening to approximately 70°.
n Delay time adjustable up to approximately 1 minute
Maximum Opening Can be templated for:
100°: A = 5-15/16˝ (151 mm) 140°: A = 4-3/16˝ (106 mm)
B = 11-15/16˝ (303 mm) B = 10-3/16˝ (259 mm)
Hold-open points up to maximum opening with hold-open arm
Arm Clearance Regular arm:
C = 1-1/16˝ (27 mm)
Hold-open arm:
C = 1-3/8˝ (35 mm)
Fusible link arm requires:
C = 1-5/8˝ (41 mm)
Note:
• Hold-open points up to maximum opening with hold-open arm
