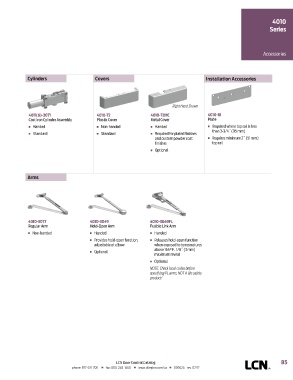

P. 37
4010
Series
Accessories
Cylinders Covers Installation Accessories
Right Hand Shown
4011(6)-3071 4010-72 4010-72MC 4010-18
Cast Iron Cylinder Assembly Plastic Cover Metal Cover Plate
n Handed n Non-handed n Handed n Required where top rail is less
than 3-3/4˝ (95 mm)
n Standard n Standard n Required for plated finishes
and custom powder coat n Requires minimum 2˝ (51 mm)
finishes top rail
n Optional
Arms
4010-3077 4010-3049 4010-3049FL
Regular Arm Hold-Open Arm Fusible Link Arm
n Non-handed n Handed n Handed
n Provides hold-open function, n Releases hold-open function
adjustable at elbow when exposed to temperatures
above 165° F. 1/8˝ (3 mm)
n Optional
maximum reveal
n Optional
NOTE: Check local codes before
specifying FL arms. NOT A life safety
product!
LCN Door Control Catalog B5
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
