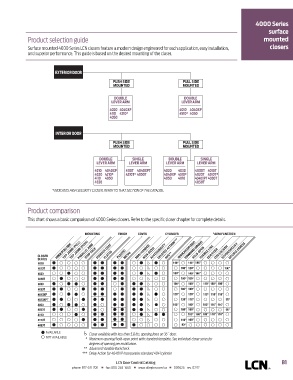

Page 33 - Herrajes Patricios - Catalogo LCN

4000 Series
surface
Product selection guide mounted

Surface mounted 4000 Series LCN closers feature a modern design engineered for each application, easy installation, closers
and superior performance. This guide is based on the desired mounting of the closer.

EXTERIOR DOOR

PUSH SIDE PULL SIDE
MOUNTED MOUNTED

DOUBLE DOUBLE
LEVER ARM LEVER ARM
4020 4040XP 4010 4040XP
4110 4210* 4510* 4050
4050

INTERIOR DOOR
PUSH SIDE PULL SIDE
MOUNTED MOUNTED

DOUBLE SINGLE DOUBLE SINGLE
LEVER ARM LEVER ARM LEVER ARM LEVER ARM
4010 4040XP 4110T 4040XPT 4020 4030 4000T 4010T
4020 4210* 4210T* 4050T 4040XP 4510* 4020T 4510T*
4110 4050 4050 4010 4040XPT 4030T
4030 4050T
* INDICATES HIGH SECURITY CLOSER. REFER TO THAT SECTION OF THE CATALOG.

Product comparison
This chart shows a basic comparison of 4000 Series closers. Refer to the specific closer chapter for complete details.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
DELAYED ACTION***
STANDARD (SINGLE)
TOP JAMB (PULL)
SCUSH/SHCUSH
HINGE (PULL) SIDE TOP JAMB (PUSH) STOP FACE POWDER COAT NON-HANDED ACCESSIBILITY REGULAR (DOUBLE) HOLD-OPEN FUSIBLE LINK CUSH/HCUSH DOUBLE EGRESS
PARALLEL ARM
NON-SIZED
EDA/HEDA
CLOSER PLATED PLASTIC METAL AVB**
SERIES
4010 140° 140° 140°
4010T 180° 120° 100°
4020 180° 140° 140°
4020T 180° 100°
4030 180° 180° 110° 100° 100°
4030T 180° 180°
4040XP 120° 120° 180° 110° 110°
4040XPT 120° 110° 95°
4050 180° 180° 180° 110° 110°
4050T 180° 180° 95°
4110 180° 180° 180° 110° 110°
4110T 110° 100°
4000T 90°
AVAILABLE Closer available with less than 5.0 lbs. opening force on 36˝ door.
NOT AVAILABLE
* Maximum opening/hold-open point with standard template. See individual closer series for
degrees of opening per installation.
** Advanced Variable Backcheck.
*** Delay Action for 4040XP incorporates standard 4041 cylinder.
LCN Door Control Catalog B1
