1 03 General
information

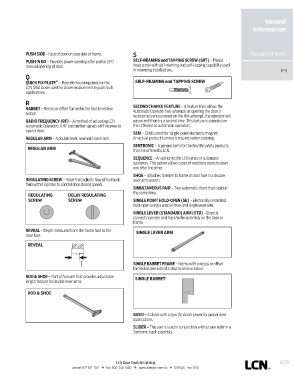

PUSH SIDE – Face of door on stop side of frame. S Glossary of terms
PUSH ‘N GO – Provides power opening after partial (5°) SELF-REAMING and TAPPING SCREW (SRT) – Philips
manual opening of door. head screw with self-reaming and self-tapping capability used
in mounting installations. P-S
Q
SIDE
QUICK FIX PLATE – Retrofit mounting plate for the SELF-REAMING and TAPPING SCREW
™
LCN 1260 closer used for closer replacement in push/pull
applications.
R
RABBET – Recess or offset formed in the face to receive SECOND CHANCE FEATURE – A feature that allows the
Automatic Operator two attempts at opening the door. If
a door. resistance is encountered on the first attempt, the operator will
4041
RADIO FREQUENCY (RF) – A method of actuating LCN pause and then try a second time. This feature is standard on
Automatic Operators. A RF transmitter signals a RF receiver to the LCN electric automatic operators.
1
open a door. 1 03
SEM – SEM is short for ‘single-point electronic magnet’.
REGULAR ARM – A double lever, non hold-open arm. An actual product number is required when ordering.
SENTRONIC – A general term for the fire/life safety products
REGULAR ARM that are offered by LCN.
SEQUENCE – An option to the LCN series of automatic
operators. This option allows a pair of vestibule doors to open
one after the other.
SHOE – Attaches forearm to frame or door face in a double
REGULATING SCREW – Valve that adjusts flow of hydraulic lever arm system.
fluid within cylinder to control door closing speed.
SIDE
SIMULTANEOUS PAIR – Two automatic doors that open at
the same time.
REGULATING DELAY REGULATING
SCREW SCREW SINGLE POINT HOLD-OPEN (SE) – Electrically controlled
hold-open using a special track and single lever arm.
SINGLE LEVER (STANDARD) ARM (STD) – Directly
connects cylinder and track/roller assembly on the door or
frame.
REVEAL – Depth measured from the frame face to the SINGLE LEVER ARM
door face.
REVEAL

SINGLE RABBET FRAME – Frame with a recess or offset
formed on one side of a stop to receive a door.
ROD & SHOE – Part of forearm that provides adjustable SINGLE RABBET
length feature for double lever arms.

ROD & SHOE

SIZED – A closer with a specific closer power for proper door
applications.
SLIDER – This part is used in conjunction with a track roller in a
Sentronic track assembly.

LCN Door Control Catalog A29
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
