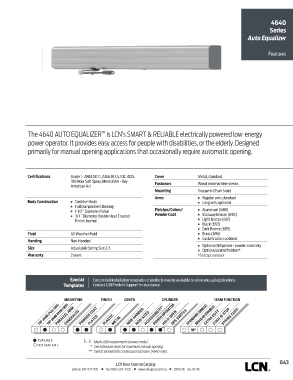

Page 307 - Herrajes Patricios - Catalogo LCN

4640
Series
Auto Equalizer

Features

The 4640 AUTO EQUALIZER is LCN’s SMART & RELIABLE electrically powered low-energy
™
power operator. It provides easy access for people with disabilities, or the elderly. Designed
primarily for manual opening applications that occasionally require automatic opening.

Certifications Grade 1 - ANSI A117.1, A156.19, UL 10C, ADA, Cover Metal, standard
100 Hour Salt Spray, Meets BAA - Buy Fasteners Wood and machine screws
American Act
Mounting Top jamb (Push Side)
Arms n Regular arm, standard
Body Construction n Cast Iron Body n Long arm, optional
n Full Complement Bearing
n 1-1/2˝ Diameter Piston Finishes/Colors/ n Aluminum (689)
n 3/4˝ Diameter Double Heat Treated Powder Coat n Statuary Bronze (690)
Pinion Journal n Light Bronze (691)
n Black (693)
n Dark Bronze (695)
Fluid All Weather Fluid n Brass (696)
n Custom colors optional
Handing Non-Handed
n Optional SRI primer - powder coat only
Size Adjustable Spring Size 2-5
n Optional plated finishes*
Warranty 2 years *End caps are black

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
POWER OPERATOR
TOP JAMB (PULL SIDE) PARALLEL ARM POWDER COAT PLASTIC METAL NON-HANDED ACCESSIBILITY* HOLD-OPEN DPS SWITCH STANDARD (SINGLE) EXTRA DUTY SPRING CUSH
TOP JAMB (PUSH SIDE)
REGULAR (DOUBLE)
CUSH-N-STOP
CONCEALED
NON-SIZED
PLATED
AVAILABLE Meets ADA requirements (power mode).
NOT AVAILABLE * See individual series for maximum manual opening.
** Switch provided for continuous hold open (4640 only).

G43
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
