4640
Series
Auto Equalizer

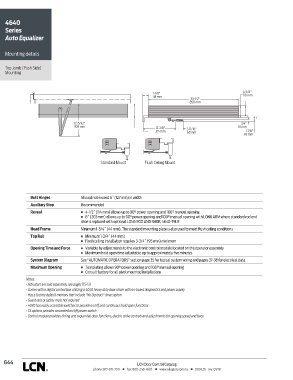

Mounting details

Top Jamb (Push Side)
Mounting

1-7/8" 4-3/8"
48 mm 110 mm
33-1/2"
850 mm

12-5/32" 3/4"
309 mm 12-3/8" 2-11/16" 19 mm
314 mm 68 mm 1-7/8"
48 mm

Standard Mount Flush Ceiling Mount

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended
Reveal n 4-1/2˝ (114 mm) allows up to 90° power opening and 100° manual opening
n 8˝ (203 mm) allows up to 90° power opening and 100° manual opening with LONG ARM where standard rod and
shoe is replaced with optional LONG ROD AND SHOE, 4640-79LR
Head Frame Minimum 1-3/4˝ (44 mm). The standard mounting plate is also used to meet flush ceiling conditions
Top Rail n Minimum 1-3/4˝ (44 mm)
n Flush ceiling installation requires 3-3/4˝ (95 mm) minimum
Opening Time and Force n Variable by adjustments to the electronic control module located on the operator assembly
n Maximum hold open time adjustable up to approximately five minutes
System Diagram See “AUTOMATIC OPERATORS” section page 35 for typical system wiring and pages 37-38 for electrical data
Maximum Opening n Templating allows 90° power opening and 100° manual opening
n Consult factory for all pivot mounted installations
Notes:
• Actuators are sold separately, see pages 115-131
• Comes with a digital control box utilizing a 4040 heavy duty door closer with on-board diagnostics and power supply
• Has a factory default memory that include "No Destruct" drive system
• Guard rails or safety mats not required
• 4030 has easily accessible switches to provide on/off and continuous hold open functions
• CS options provides concealed on/off power switch
• Control module provides timing and sequential door functions, electric strike controls and adjustments for opening speed and force.

G44 LCN Door Control Catalog
