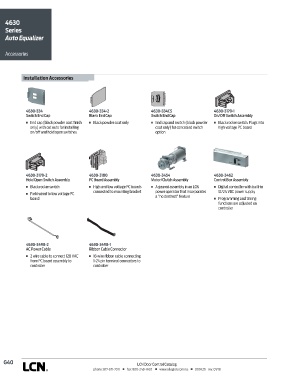

4630
Series
Auto Equalizer

Accessories

Installation Accessories

4630-334 4630-334-2 4630-334CS 4630-3179-1
Switch End Cap Blank End Cap Switch End Cap On/Off Switch Assembly
n End cap (black powder coat finish n Black powder coat only n End cap and switch (black powder n Black rocker switch. Plugs into
only) with cut outs for installing coat only) for concealed switch high voltage PC board
on/off and hold open switches option

4630-3179-2 4630-3180 4630-3454 4630-3462
Hold Open Switch Assembly PC Board Assembly Motor/Clutch Assembly Control Box Assembly
n Black rocker switch n High and low voltage PC boards n A geared assembly in an LCN n Digital controller with built-in
connected to mounting bracket power operator that incorporates 12/24 VDC power supply
n Field wired to low voltage PC a “no destruct” feature
board n Programming and timing
functions are adjusted on
controller

4630-3498-2 4630-3498-1
AC Power Cable Ribbon Cable Connector
n 2 wire cable to connect 120 VAC n 16 wire ribbon cable connecting
from PC board assembly to 1-24 pin terminal connectors to
controller controller

G40 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
