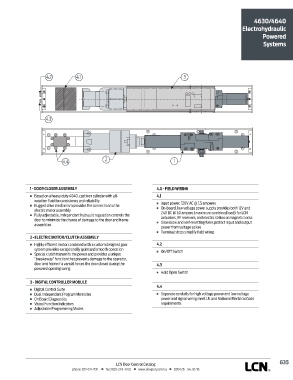

4630/4640
Electrohydraulic
Powered
Systems

4.2 4.1 3

4.3

4.4 2 1

1 - DOOR CLOSER ASSEMBLY 4.X - FIELD WIRING
n Based on a heavy duty 4040, cast iron cylinder with all- 4.1
weather fluid for consistency and reliability
n Rugged drive mechanism provides the connection to the n Input power; 120V AC @ 1.5 amperes
n On-board, low voltage power supply provides both 12V and
electric motor assembly
n Fully adjustable, independent hydraulic regulation controls the 24V DC @ 1.0 ampere (maximum combined load) for LCN
actuators, RF receivers, and electric strikes or magnetic locks
door to minimize the chance of damage to the door and frame n Slow blow and self-resetting fuses protect input and output
assemblies
power from voltage spikes
n Terminal strips simplify field wiring
2 - ELECTRIC MOTOR/CLUTCH ASSEMBLY
n Highly efficient motor combined with a custom designed gear 4.2
system provides exceptionally quiet and smooth operation n On/Off Switch
n Special clutch transmits the power and provides a unique
“breakaway” function that prevents damage to the operator,
door and frame if a vandal forces the door closed during the 4.3
powered opening swing
n Hold Open Switch

3 - DIGITAL CONTROLLER MODULE
4.4
n Digital Control Suite
n Dual Independent Program Memories n Separate conduits for high voltage power and low voltage
n On Board Diagnostics power and signal wiring meet UL and National Electrical Code
n Visual Function Indicators requirements
n Adjustable Programming Modes

G35
