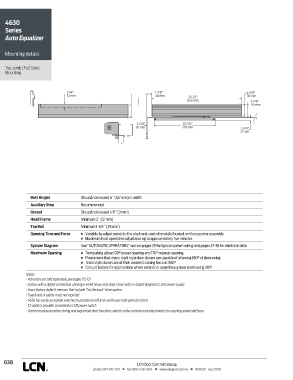

4630
Series
Auto Equalizer

Mounting details

Top Jamb (Pull Side)
Mounting

1-1/4" 1-7/8" 4-3/8"
32 mm 48 mm 33-1/2" 110 mm
850 mm 4-7/8"
125 mm

2-5/8" 22-3/4"
67 mm 578 mm 1-1/16"
27 mm

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended
Reveal Should not exceed 1/8˝ (3 mm)
Head Frame Minimum 2˝ (51 mm)
Top Rail Minimum 1-1/8˝ (29 mm)
Opening Time and Force n Variable by adjustments to the electronic control module located on the operator assembly
n Maximum hold open time adjustable up to approximately five minutes
System Diagram See “AUTOMATIC OPERATORS” section pages 35 for typical system wiring and pages 37-38 for electrical data
Maximum Opening n Templating allows 90° power opening and 170° manual opening
n Please note that many track style door closers are capable of allowing 180° of door swing
n Track style closers are at their weakest closing force at 180°
n Consult factory for applications where exterior or large/heavy door must swing 180°
Notes:
• Actuators are sold separately, see pages 115-131
• Comes with a digital control box utilizing a 4040 heavy duty door closer with on-board diagnostics and power supply
• Has a factory default memory that include "No Destruct" drive system
• Guard rails or safety mats not required
• 4630 has easily accessible switches to provide on/off and continuous hold open functions
• CS options provides concealed on/off power switch
• Control module provides timing and sequential door functions, electric strike controls and adjustments for opening speed and force

G38 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 01/18
