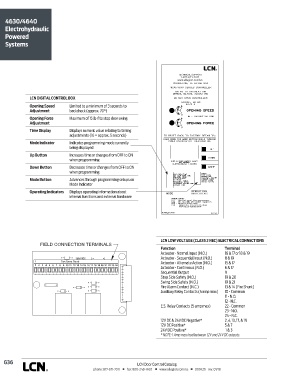

4630/4640
Electrohydraulic
Powered
Systems

®
T E C H N I C A S L U P P O RT
1-877-671-7011
www.allegion.com/us

LCN DIGITAL CONTROL BOX
Opening Speed Limited to a minimum of 3 seconds to
Adjustment backcheck (approx. 70°)
Opening Force Maximum of 15 lb-f to stop door swing
Adjustment
Time Display Displays numeric value relating to timing
adjustments (16 = approx. 5 seconds)
Mode Indicator Indicates programming mode currently
being displayed
Up Button Increases time or changes from OFF to ON
when programming
Down Button Decreases time or changes from OFF to ON
when programming
Mode Button Advances through programming setups on
Mode Indicator
Operating Indicators Displays operating information about
internal functions and external hardware

© Allegion 2015 M F G . D A T E

LCN LOW VOLTAGE (CLASS 2 NEC) ELECTRICAL CONNECTIONS
FIELD CONNECTION TERMINALS
Function Terminal
Actuator - Normal Input (N.O.) 16 & 17 or 18 & 19
12/24 VDC Actuator - Sequential Input (N.O.) 8 & 19
1 Fire Alarm Shunt Actuator - Alternate Action (N.O.) 15 & 17
1 2 34 5 67 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
Actuator - Continuous (N.O.) 6 & 17
Sequential Output 9
Stop Side Safety (N.O.) 19 & 20
Swing Side Safety (N.O.) 19 & 21
Fire Alarm Contact (N.C.) 13 & 14 (Fire Shunt)
Auxiliary Relay Contacts (5 amp max) 10 - Common
11 - N.O.
12 - N.C.
E.S. Relay Contacts (5 amp max) 22 - Common
23 - N.O.
24 - N.C.
12V DC & 24V DC Negative* 2, 4, 13, 17, & 19
12V DC Positive* 5 & 7
24V DC Positive* 1 & 3
* NOTE: 1 Amp max load between 12V and 24V DC outputs.
