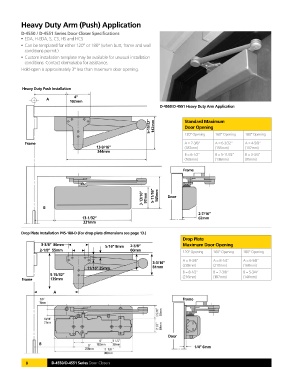

Heavy Duty Arm (Push) Application

D-4550 / D-4551 Series Door Closer Specifications
• EDA, H-EDA, S, CS, HS and HCS
• Can be templated for either 120° or 180° (when butt, frame and wall
conditions permit.)
• Custom installation template may be available for unusual installation
conditions. Contact dormakaba for assistance.
Hold-open is approximately 3º less than maximum door opening.

Heavy Duty Push Installation

4”
A 102mm
D-4550/D-4551 Heavy Duty Arm Application

5-19/32” 142mm Standard Maximum
Door Opening
120° Opening 160° Opening 180° Opening

Frame A = 7-3/8” A = 6-3/32” A = 4-5/8”
13-9/16” (187mm) (155mm) (117mm)
344mm
B = 6-1/2” B = 5-11/32” B = 3-3/4”
(165mm) (136mm) (95mm)

Frame

3-13/16” 97mm 5-11/16” 145mm Door

B
2-7/16”
13-1/32” 62mm
331mm

Drop Plate Installation P45-180-D (For drop plate dimensions see page 13.)
Drop Plate
3-3/8” 86mm 5/16” 8mm 2-3/8” Maximum Door Opening
2-1/8” 55mm 60mm 120° Opening 160° Opening 180° Opening
A = 9-3/8” A = 8-1/4” A = 6-5/8”
3-3/16”
11/16” 25mm 81mm (238mm) (210mm) (168mm)
B = 8-1/2” B = 7-3/8” B = 5-3/4”
5 15/32”
Frame 139mm (216mm) (187mm) (146mm)

A
Frame

Door
B
1/4” 6mm

8 D-4550/D-4551 Series Door Closers
