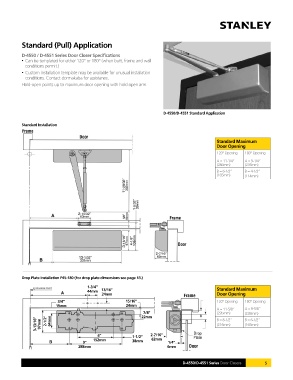

Standard (Pull) Application

D-4550 / D-4551 Series Door Closer Specifications
• Can be templated for either 120° or 180° (when butt, frame and wall
conditions permit.)
• Custom installation template may be available for unusual installation
conditions. Contact dormakaba for assistance.
Hold-open points up to maximum door opening with hold open arm.

D-4550/D-4551 Standard Application

Standard Installation

Standard Maximum
Door Opening
120° Opening 180° Opening
A = 11-1/4” A = 9-1/4”
(286mm) (235mm)
B = 6-1/2” B = 4-1/2”
(165mm) (114mm)

Drop Plate Installation P45-180 (For drop plate dimensions see page 13.)
1-3/4” Standard Maximum
44mm 13/16”
24mm Door Opening
3/4” 15/16” 120° Opening 180° Opening
19mm 24mm
A = 11-5/8” A = 9-5/8”
7/8” (295mm) (238mm)
22mm
3-13/16” 97mm 2-1/2” 64mm B = 8-1/2” B = 6-1/2”
(216mm)
(165mm)
6” 1-1/2” 2-7/16”
152mm 38mm 62mm
9” 1/4”
288mm 6mm

D-4550/D-4551 Series Door Closers 5
