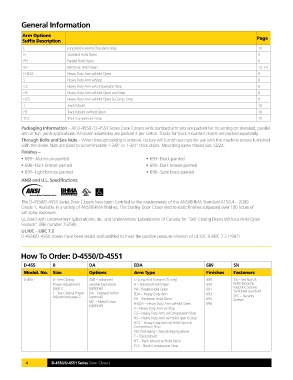

General Information

Arm Options Page
Suffix Description
L Long Rod Forearm (Top Jams only) 10
H Standard Hold Open 5
PH Parallel Hold Open 6
EH Electronic Hold Open 13, 14
H-EDA Heavy Duty Arm w/Hold Open 8
S Heavy Duty Arm w/Stop 8
CS Heavy Duty Arm w/Compression Stop 8
HS Heavy Duty Arm w/Hold Open and Stop 8
HCS Heavy Duty Arm w/Hold Open & Comp. Stop 8
T Track Mount 10
HT Track Mount w/Hold Open 10
TCS Track Compression Stop 10

Packaging Information – All D-4550 / D-4551 Series Door Closers with standard arm sets are packed for mounting on standard, parallel
arm or top jamb applications. All closer assemblies are packed 4 per carton. Tracks for track mounted closers are packed separately.
Through Bolts and Sex Nuts – When through bolting is ordered, factory will furnish sex nuts for use with the machine screws furnished
with the closer. Nuts are sized to accommodate 1-3/8” or 1-3/4” thick doors. Mounting screw thread size 12/24.
Finishes –
• 689– Aluminum painted • 693– Black painted
• 690– Dark bronze painted • 695– Dark bronze painted
• 691– Light bronze painted • 696– Satin brass painted
ANSI and U.L. Specifications:

The D-4550/D-4551 Series Door Closers have been Certified to the requirements of the ANSI/BHMA Standard A156.4 - 2000
Grade 1. Available in a variety of ANSI/BHMA finishes. The Stanley Door Closer electro-static finishes surpassed over 100 hours of
salt spray exposure.
UL listed with Underwriters’ Laboratories, Inc. and Underwriters’ Laboratories of Canada for “Self Closing Doors Without Hold-Open
Feature”. (File number 7525R).
UL10C – UBC 7.2
D-4550/D-4550 closers have been tested and certified to meet the positive pressure criterion of UL10C & UBC 7.2 (1997)

How To Order: D-4550/D-4551
D-455 0 DA EDA 689 SN
Model. No. Size Options Arm Type Finishes Fasteners
D-455 0– See Closing AVB – advanced L– Long Rod Forearm (TJ only) 689 SN – Sex Nuts &
Power Adjustment variable backcheck H – Standard Hold Open 690 Bolts Wood &
page 2 (optional) PH – Parallel Hold Open 691 Machine Screws
1– See Closing Power DA – Delayed Action EDA – Heavy Duty Arm 693 furnished standard
Adjustment page 2 (optional) EH – Electronic Hold Open 695 SEC – Security
MC – Metal Cover H-EDA – Heavy Duty Arm w/Hold Open 696 Screws
(optional)
S – Heavy Duty Arm w/ Stop
CS – Heavy Duty Arm w/Compression Stop
HS – Heavy Duty Arm w/ Hold Open & Stop
HCS – Heavy Duty Arm w/ Hold Open &
Compression Stop
Std. Packaging – See packaging above
T – Track Mount
HT – Track Mount w/ Hold Open
TCS – Track Compression Stop

4 D-4550/D-4551 Series Door Closers
