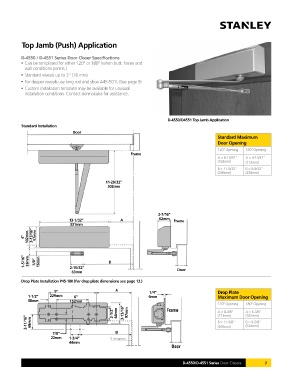

Top Jamb (Push) Application

D-4550 / D-4551 Series Door Closer Specifications
• Can be templated for either 120° or 180° (when butt, frame and
wall conditions permit.)
• Standard reveals up to 3” (76 mm)
• For deeper reveals use long rod and shoe A45-501L (See page 9)
• Custom installation template may be available for unusual
installation conditions. Contact dormakaba for assistance.

D-4550/D4551 Top Jamb Application
Standard Installation
Door
Standard Maximum
Door Opening
120° Opening 180° Opening
Frame
A = 6-13/32” A = 4-13/32”
(163mm) (112mm)
B = 11-9/32” B = 9-9/32”
(286mm) (236mm)

11-29/32”
302mm

2-7/16”
13-1/32” A 62mm Frame
331mm

4” 102mm 3-13/16” 97mm

1-5/16” 33mm 5/8” 16mm B

2-15/32”
63mm Door

Drop Plate Installation P45-180 (For drop plate dimensions see page 13.)
9” 1/4” Drop Plate
1-1/2” 229mm 6” 6mm Maximum Door Opening
38mm 152mm
120° Opening 180° Opening
2-1/2” 64mm 3-13/16” 97mm A = 8-3/8” A = 6-3/8”
(162mm)
(213mm)
2-11/16” 68mm B = 11-5/8” B = 9-5/8”
(244mm)
(295mm)
7/8”
22mm 1-3/4”
44mm

D-4550/D-4551 Series Door Closers 7
