P. 32

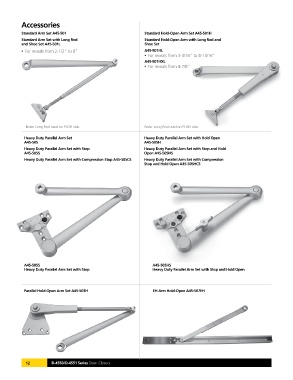

Accessories

          Standard Arm Set A45-501                           Standard Hold-Open Arm Set A45-501H
          Standard Arm Set with Long Rod                     Standard Hold-Open Arm with Long Rod and
          and Shoe Set A45-501L                              Shoe Set
          •  For reveals from 2-1/2” to 8”                   A45-501HL
                                                             •  For reveals from 3-3/16” to 4-13/16”
                                                             A45-501HXL
                                                             •  For reveals from 4-7/8”  to 8”













            Note: Long Rod used on PUSH side                 Note: Long Rod used on PUSH side

           Heavy Duty Parallel Arm Set                       Heavy Duty Parallel Arm Set with Hold Open
           A45-505                                           A45-505H
           Heavy Duty Parallel Arm Set with Stop             Heavy Duty Parallel Arm Set with Stop and Hold
           A45-505S                                          Open A45-505HS
           Heavy Duty Parallel Arm Set with Compression Stop A45-505CS  Heavy Duty Parallel Arm Set with Compression
                                                             Stop and Hold Open A45-505HCS
























           A45-505S                                              A45-505HS
           Heavy Duty Parallel Arm Set with Stop                 Heavy Duty Parallel Arm Set with Stop and Hold Open



           Parallel Hold-Open Arm Set A45-503H                   EH Arm Hold-Open A45-507EH

















            12         D-4550/D-4551 Series Door Closers
