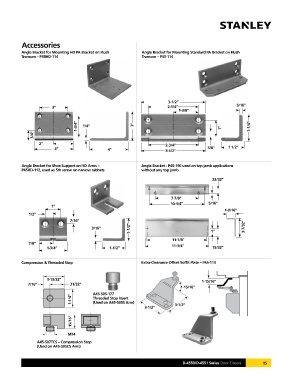

Accessories
Angle Bracket for Mounting HD PA Bracket on Flush Angle Bracket for Mounting Standard PA Bracket on Flush
Transom – P45HD-114 Transom – P45-114

3-1/2”
3” 2-3/4” 3/16”
1-3/8”

1-3/4” 1/4” 3” 1” 1-1/4”
3/4”

2” 2-3/4”
4” 4” 3-1/2” 3/8” 1 1/2”

Angle Bracket for Shoe Support on HD Arms – Angle Bracket - P45-190 used on top jamb applications
P45HD-112, used as 5th screw on narrow rabbets without any top jamb
23/32”

7-7/8”
10-1/4” 5/16”
1”
1-9/16”
1/2”
7/16”
1-1/2” 1”
3/16” 3-7/32”

11-1/8”
7/8” 11-3/4”
1-3/4” 1-1/2” 15/32”

Compression & Threaded Stop Extra-Clearance Offset Soffit Plate – P45-113

1-13/32” 1-15/16”
7/16” 31/32”
1-15/16”
A45-505-177
1-1/4” Threaded Stop Insert
(Used on A45-505S Arm)
3-1/2” 3-1/2”
15/16”

M14
A45-507TCS – Compression Stop
(Used on A45-505CS Arm)

D-4550/D-4551 Series Door Closers 15
