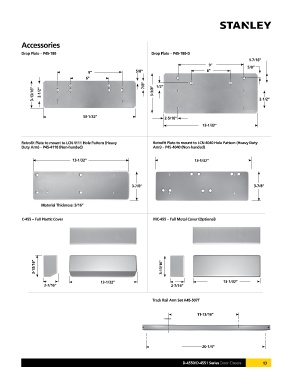

Accessories
Drop Plate – P45-180 Drop Plate – P45-180-D
1-7/16”
9” 5/8”
9” 5/8” 6”
6”
7/8” 1/2”
3-13/16” 2-1/2” 5-3/8” 2-1/2”
13-1/32” 2-5/16”
13-1/32”
Retrofit Plate to mount to LCN 4111 Hole Pattern (Heavy Retrofit Plate to mount to LCN 4040 Hole Pattern (Heavy Duty
Duty Arm) – P45-4110 (Non-handed) Arm) – P45-4040 (Non-handed)
13-1/32” 13-1/32”
3-7/8” 3-7/8”
Material Thickness: 3/16”
C-455 – Full Plastic Cover MC-455 – Full Metal Cover (Optional)
3-13/16” 3-13/16”
13-1/32” 13-1/32”
2-7/16” 2-7/16”
Track Rail Arm Set A45-507T
11-13/16”
20-1/4”
