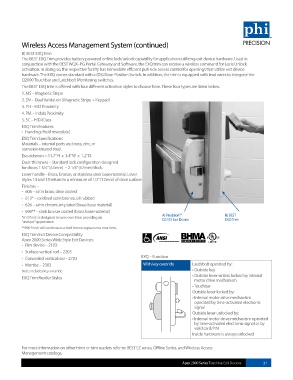

Wireless Access Management System (continued)

B) BEST EXQ Trim
The BEST EXQ Trim provides battery powered online lock/unlock capability for applications utilizing exit device hardware. Used in
conjunction with the BEST WQX–PG Portal Gateway and Software, the EXQ trim can receive a wireless command for Lock/Unlock
activation. In doing so, the respective facility has immediate efficient pull-side access control for openings that utilize exit device
hardware. The EXQ comes standard with a (DS) Door Position Switch. In addition, the trim is equipped with lead wires to integrate the
Q2000 Touchbar and Latchbolt Monitoring switches.
The BEST EXQ trim is offered with four different activation styles to choose from. These four types are listed below.
1. MS – Magnetic Stripe
2. DV – Dual Validation (Magnetic Stripe + Keypad)
3. PH – HID Proximity
4. PM – Indala Proximity
5. SC – HID iClass
EXQ Trim Features
• Handing (Field reversible)
EXQ Trim Specifications
Materials – Internal parts are brass, zinc, or
corrosion treated steel.
Escutcheons – 11.7” H x 3.4” W x 1.2” D.
Door thickness – Standard lock configuration designed
for doors 1 3/4” (44mm) – 2 1/4” (57mm) thick.
Lever handle – Brass, bronze, or stainless steel base material. Lever
styles 14 and 15 return to a minimum of 1/2” (12mm) of door surface.
Finishes –
• 606 – satin brass, clear coated
• 613* – oxidized satin bronze, oil rubbed
• 626 – satin chromium plated (brass base material)
• 690** – dark bronze coated (brass base material)
*613 finish is designed to wear over time, providing an A) Precision™ B) BEST
Q2103 Exit Device
EXQ Trim
“antique” appearance.
**690 finish will continue as a dark brown appearance over time.
EXQ Trim Exit Device Compatibility
Apex 2000 Series Wide Style Exit Devices:
• Rim device – 2103
• Surface vertical rod – 2203
• Concealed vertical rod – 2703 EXQ – Function
• Mortise – 2303 With key override Latchbolt operated by:
Note: includes key-override • Outside key
• Outside lever-unless locked by internal
EXQ Trim Reader Styles
motor drive mechanism
• Touchbar
Outside lever locked by:
• Internal motor drive mechanism
operated by time-activated electronic
signal
Outside lever unlocked by:
• Internal motor drive mechanism operated
by time-activated electronic signal or by
valid card/PIN
Inside hardware is always unlocked

For more information on other trims or trim readers refer to: BEST EZ series, Offline Series, and Wireless Access
Management catalogs.

Apex 2000 Series Touchbar Exit Devices 31
