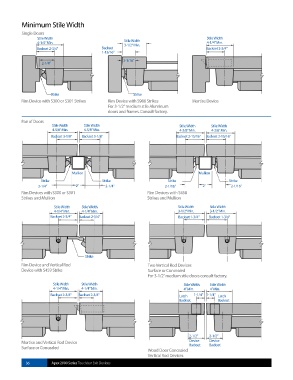

Minimum Stile Width

Single Doors
Stile Width Stile Width
4-1/4” Min. Stile Width 4-1/4” Min.
3-1/2” Min.
Backset 2-3/4” Backset Backset 2-3/4”
1-15/16”
2-1/16”
2-1/4”

Strike Strike
Rim Device with S300 or S301 Strikes Rim Device with S988 Strikes Mortise Device
For 3-1/2” medium stile Aluminum
doors and frames. Consult factory.

Pair of Doors
Stile Width Stile Width Stile Width Stile Width
4-5/8” Min. 4-5/8” Min. 4-3/8” Min. 4-3/8” Min.
Backset 3-1/8” Backset 3-1/8” Backset 2-15/16” Backset 2-15/16”

Mullion Mullion
Strike Strike Strike Strike
2-1/4” 2” 2-1/4” 2-1/16” 2” 2-1/16”
Rim Devices with S300 or S301 Rim Devices with S458
Strikes and Mullion Strikes and Mullion
Stile Width Stile Width Stile Width Stile Width
4-1/4” Min. 4-1/4” Min. 3-1/2” Min. 3-1/2” Min.
Backset 2-3/4” Backset 2-1/4” Backset 1-3/4” Backset 1-3/4”

Strike
Rim Device and Vertical Rod Two Vertical Rod Devices
Device with S459 Strike Surface or Concealed
For 3-1/2” medium stile doors consult factory.
Stile Width Stile Width Stile Width Stile Width
4-1/4” Min. 4-1/4” Min. 4” Min. 4” Min.
Backset 2-3/4” Backset 2-3/4” Latch 1-1/4” 1-1/4” Latch
Backset Backset

2-1/2” 2-1/2”
Mortise and Vertical Rod Device Device Device
Surface or Concealed Backset Backset
Wood Door Concealed
Vertical Rod Devices
36 Apex 2000 Series Touchbar Exit Devices
