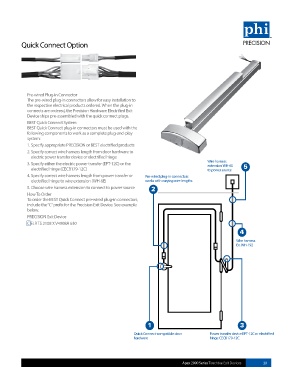

Quick Connect Option

Pre-wired Plug-in Connector
The pre-wired plug-in connectors allow for easy installation to
the respective electrical products ordered. When the plug-in
connects are ordered, the Precision Hardware Electrified Exit
Device ships pre-assembled with the quick connect plugs.
BEST Quick Connect System
BEST Quick Connect plug-in connectors must be used with the
following components to work as a complete plug-and-play
system:
1. Specify appropriate PRECISION or BEST electrified products
2. Specify correct wire harness length from door hardware to
electric power transfer device or electrified hinge
3. Specify either the electric power transfer (EPT-12C) or the Wire harness
extension WH-6E
electrified hinge (CECB179-12C) to power source 5
4. Specify correct wire harness length from power transfer or Pre-wired plug-in connectors
electrified hinge to wire extension (WH-6E) works with varying wire lengths
5. Choose wire harness extension to connect to power source 2
How To Order
To order the BEST Quick Connect pre-wired plug-in connectors,
include the “C” prefix for the Precision Exit Device. See example
below.
PRECISION Exit Device
C ELR TS 2108 X V4908A 630
4

Wire harness
Ex. WH-192

1 3
Quick Connect-compatible door Power transfer device EPT-12C or electrified
hardware hinge CECB179-12C

Apex 2000 Series Touchbar Exit Devices 39
