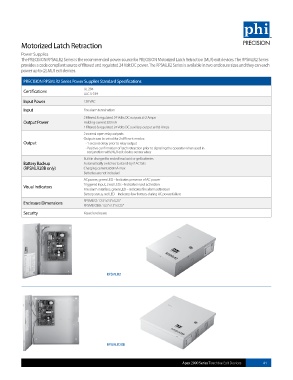

Motorized Latch Retraction
Power Supplies
The PRECISION RPSMLR2 Series is the recommended power source for PRECISION Motorized Latch Retraction (MLR) exit devices. The RPSMLR2 Series
provides a code compliant source of filtered and regulated 24 Volt DC power. The RPSMLR2 Series is available in two enclosure sizes and they can each
power up to (2) MLR exit devices.
PRECISION RPSMLR2 Series Power Supplies Standard Specifications

UL 294
Certifications
ULC S-319
Input Power 120 VAC
Input Fire alarm termination
2 filtered & regulated 24 Volts DC outputs @ 2 Amps
Output Power Holding current 200mA
1 filtered & regulated 24 Volts DC auxiliary output @ 0.8 Amps
2 normal open relay outputs
Outputs can be wired for 2 different modes:
Output - 1 second delay prior to relay output
- Positive confirmation of latch retraction prior to signaling the operator when used in
conjunction with MLR exit device sensor wires
Built in charger for sealed lead acid or gel batteries
Battery Backup Automatically switches to stand-by if AC fails
(RPSMLR2BB only) Charging current 650mA max
Batteries are not included
AC power, green LED – Indicates presence of AC power
Visual Indicators Triggered input, 2 red LEDs – Indicates input activation
Fire alarm interface, green LED – Indicates fire alarm activation
Battery status, red LED – Indicates low battery during AC power failure
Enclosure Dimensions RPSMLR2: 12.5”x7.5”x3.25”
RPSMLR2BB: 13.5”x13”x3.25”
Security Keyed enclosure

RPSMLR2

RPSMLR2BB

Apex 2000 Series Touchbar Exit Devices 41
