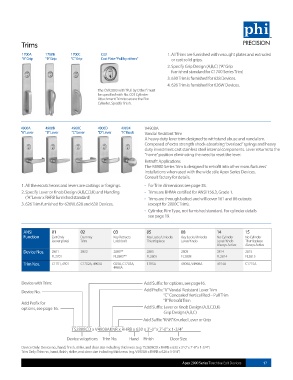

Trims

1700A 1700B 1700C C03 1. All Trims are furnished with wrought plates and extruded
“A” Grip “B” Grip “C” Grip Cast Plate “Pull by others” or cast solid grips.
2. Specify Grip Design (A,B,C) (“A” Grip
furnished standard for C1700 Series Trim)
3. 630 Trim is furnished for 628 Devices.
4. 626 Trim is furnished for 626W Devices.
The CVR2803 with “Pull by Other” must
be specified with No. C03 Cylinder
Attachment Trim to secure the Rim
Cylinder. Specify finish.

4900A 4900B 4900C 4900D 4900K V4908A
“A” Lever “B” Lever “C” Lever “D” Lever “K” Knob Vandal Resistant Trim
A heavy duty lever trim designed to withstand abuse and vandalism.
Composed of extra strength shock-absorbing “overload” springs and heavy
duty investment cast stainless steel internal components. Lever returns to the
“home” position eliminating the need to reset the lever.
Retrofit Applications
The R4900 Series Trim is designed to retrofit into other manufacturers’
installations when used with the wide stile Apex Series Devices.
Consult factory for details.

1. All the escutcheons and levers are castings or forgings. • For Trim dimensions see page 38.
2. Specify Lever or Knob Design (A,B,C,D,K) and Handing • Trims are BHMA certified for ANSI 156.3, Grade 1.
(“A” Lever x RHRB furnished standard) • Trims are through bolted and will cover 161 and 86 cutouts
3. 626 Trim furnished for 626W, 628 and 630 Devices. (except for 2000C Trim).
• Cylinder, Rim Type, not furnished standard. For cylinder details
see page 19.

ANSI 01 02 03 05 08 14 15
Function Exit Only Dummy Key Retracts Key Locks/Unlocks Key Locks/Unlocks No Cylinder No Cylinder
(cover plate) Trim Latchbolt Thumbpiece Lever/Knob Lever/Knob Thumbpiece
Always Active Always Active
Device Nos. 2801 2802 2803** 2805 2808 2814 2815
FL2701 FL2803** FL2805 FL2808 FL2814 FL2815
Trim Nos. C1701, 4901 C1702A, 4902A C03A, C1703A, 1705A 4908A, V4908A 4914A C1715A
4903A

Device with Trim: Add Suffix: for options, see page16.
Device No. Add Prefix: “V” Vandal Resistant Lever Trim
“C” Concealed Vertical Rod – Pull Trim
“R” Retrofit Trim
Add Prefix for
options, see page 16. Add Suffix: Lever or Knob Design (A,B,C,D,K)
Grip Design (A,B,C)
Add Suffix: “KNR” Knurled Lever or Grip

TS2808CD x V4908AKNR x RHRB x 630 x 3’-0” x 7’-0” x 1-3/4”

Device w/options Trim No. Hand Finish Door Size
Device Only: Device no., hand, finish, strike, and door size including thickness: (e.g. TS2808CD x RHRB x 630 x 3’-0” x 7’-0” x 1-3/4”)
Trim Only: Trim no., hand, finish, strike, and door size including thickness: (e.g. V4908A x RHRB x 626 x 1-3/4”)

Apex 2000 Series Touchbar Exit Devices 17
