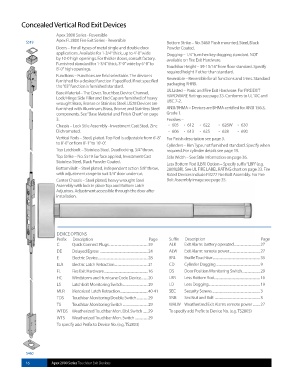

Page 16 - PHI - Cierrapuertas

Concealed Vertical Rod Exit Devices

Apex 2800 Series - Reversible
Apex FL2800 Fire Exit Series - Reversible
S519 Bottom Strike – No. S460 Flush mounted, Steel, Black
Doors – For all types of metal single and double door Powder Coated.
applications. Available for 1-3/4” thick, up to 4’-0” wide Dogging – 1/4” turn hex key dogging standard. NOT
by 10-0 high openings. For thicker doors, consult factory. available on Fire Exit Hardware.
Furnished standard for 1-3/4” thick, 3’-0” wide by 6’-8” to
8’-0” high openings. Touchbar Height – 39-15/16” from floor standard. Specify
required height if other than standard.
Functions – Functions are field selectable. The device is
furnished for a desired function if specified. If not specified Reversible – Reversible for all functions and trims. Standard
the “03” function is furnished standard. packaging RHRB.
Base Material – The Cover, Touchbar, Device Channel, UL Listed – Panic and Fire Exit Hardware. For FIRE EXIT
Lock/Hinge Side Filler and End Cap are furnished of heavy HARDWARE Ratings see page 33. Conforms to UL10C and
wrought Brass, Bronze or Stainless Steel. US28 Devices are UBC 7-2.
furnished with Aluminum, Brass, Bronze and Stainless Steel ANSI/BHMA – Devices are BHMA certified for ANSI 156.3,
components. See “Base Material and Finish Chart” on page Grade 1.
3. Finishes –
Chassis – Lock Stile Assembly - Investment Cast Steel, Zinc • 605 • 612 • 622 • 626W • 630
Dichromated. • 606 • 613 • 625 • 628 • 690
Vertical Rods – Steel, plated. Top Rod is adjustable from 6’-8” For Finish description see page 3.
to 8’-0” or from 8’-1” to 10’-0”. Cylinders – Rim Type, not furnished standard. Specify when
Top Latchbolt – Stainless Steel, Deadlocking, 3/4” throw. required. For cylinder details see page 19.
Top Strike – No. S519 Surface applied, Investment Cast Stile Width – See Stile Information on page 36.
Stainless Steel, Black Powder Coated. Less Bottom Rod (LBR) Option – Specify suffix “LBR” (e.g.
Bottom Bolt – Steel plated, independent action 5/8” throw, 2808LBR). See UL FIRE LABEL RATING chart on page 33. Fire
with adjustment range to suit 3/4” door undercut. Rated Devices include FB277 Fire Bolt Assembly. For Fire
Center Chassis – Steel plated, heavy wrought Steel Bolt Assembly image see page 35.
Assembly with lock in place Top and Bottom Latch
Adjustors. Adjustment accessible through the door after
installation.

DEVICE OPTIONS
Prefix Description Page Suffix Description Page
C Quick Connect Plugs ................................................39 ALK Exit Alarm: battery operated ................................27
DE Delayed Egress ...........................................................24 ALW Exit Alarm: remote power ......................................27
E Electric Device ..............................................................28 BRL Braille Touchbar ...........................................................35
ELR Electric Latch Retraction .........................................21 CD Cylinder Dogging ......................................................9
FL Fire Exit Hardware ......................................................16 DS Door Position Monitoring Switch ......................29
HC Windstorm and Hurricane Code Device ........20 LBR Less Bottom Rod .........................................................16
LS Latchbolt Monitoring Switch ...............................29 LD Less Dogging ................................................................19
MLR Motorized Latch Retraction ..................................40-41 SEC Security Screws ...........................................................3
TDS Touchbar Monitoring Double Switch ..............29 SNB Sex Nut and Bolt ........................................................3
TS Touchbar Monitoring Switch ...............................29 WALW Weatherized Exit Alarm: remote power .........27
WTDS Weatherized Touchbar Mon. Dbl. Switch ......29 To specify add Prefix to Device No. (e.g. TS2803)
WTS Weatherized Touchbar Mon. Switch ................29
To specify add Prefix to Device No. (e.g. TS2803)

S460

16 Apex 2000 Series Touchbar Exit Devices
