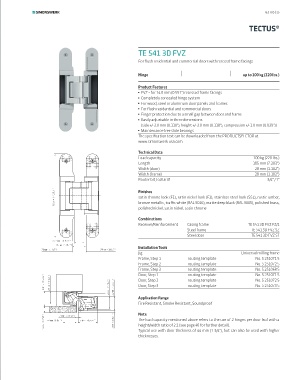

TECTUS | 25

TECTUS®

TE 541 3D FVZ
For flush residential and commercial doors with recessd frame facings

Hinge up to 100 kg (220 lbs.)

Product Features
FVZ = for 14.0 mm (0.551“) recessed frame facings
Completely concealed hinge system
For wood, steel or aluminum door panels and frames
For flush residential and commercial doors
Finger protection due to a small gap between door and frame
Easily adjustable in three dimensions
(side +/- 3.0 mm (0.118“), height +/- 3.0 mm (0.118“), compression +/- 1.0 mm (0.039“))
Maintenance-free slide bearings
The specification text can be downloaded from the PRODUCTSELCTOR at
www.simonswerk-usa.com.

Technical Data
Load capacity 100 kg (220 lbs.)
Length 185 mm (7.283“)
Width (door) 28 mm (1.102“)
Width (frame) 28 mm (1.102“)
Router bit / collar Ø 3/4“ / 1“

Finishes
satin chrome look (F1), satin nickel look (F2), stainless steel look (SSL), rustic umber,
bronze metallic, traffic white (RAL 9016), matte deep black (RAL 9005), polished brass,
polished nickel, satin nickel, satin chrome
Combinations
Receiver/Reinforcement Casing frame TE 541 3D FVZ FZ/1
Steel frame TE 541 3D FVZ SZ
Steel door TE 541 3D FVZ ST

Installation Tools
Jig Universal milling frame
Frame, Step 1 routing template No. 5 251071 5
Frame, Step 2 routing template No. 5 251072 5
Frame, Step 3 routing template No. 5 251068 5
Door, Step 1 routing template No. 5 251071 5
Door, Step 2 routing template No. 5 251072 5
Door, Step 3 routing template No. 5 251073 5

Application Range
Fire Resistant, Smoke Resistant, Soundproof

Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf with a
height/width ratio of 2:1 (see page 46 for further detail).
Typical use with door thickness of 44 mm (1 3/4“), but can also be used with higher
thicknesses.
