TECTUS | 29

TECTUS®

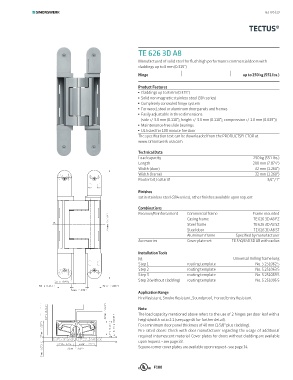

TE 626 3D A8
Manufactured of solid steel for flush high performance commercial doors with
claddings up to 8 mm (0.315“)
Hinge up to 250 kg (551 lbs.)

Product Features
Claddings up to 8 mm (0.315“)
Solid non magnetic stainless steel (304 series)
Completely concealed hinge system
For wood, steel or aluminum door panels and frames
Easily adjustable in three dimensions
(side +/- 3.0 mm (0.118“), height +/- 3.0 mm (0.118“), compression +/- 1.0 mm (0.039“))
Maintenance-free slide bearings
UL listed for 180 minute fire door
The specification text can be downloaded from the PRODUCTSELCTOR at
www.simonswerk-usa.com.

Technical Data
Load capacity 250 kg (551 lbs.)
Length 200 mm (7.874“)
Width (door) 32 mm (1.260“)
Width (frame) 32 mm (1.260“)
Router bit / collar Ø 3/4“ / 1“

Finishes
satin stainless steel (304 series), other finishes available upon request

Combinations
Receiver/Reinforcement Commercial frame Frame mounted
Casing frame TE 626 3D A8 FZ
Steel frame TE 626 3D A8 SZ
Steel door TE 626 3D A8 ST
Aluminum frame Specified by manufacturer
Accessories Cover plate set TE 540/640 3D A8 with radius

Installation Tools
Jig Universal milling frame long
Step 1 routing template No. 5 251062 5
Step 2 routing template No. 5 251063 5
Step 3 routing template No. 5 251069 5
Step 3 (without cladding) routing template No. 5 251095 5

Application Range
Fire Resistant, Smoke Resistant, Soundproof, Forced Entry Resistant

Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf with a
height/width ratio 2:1 (see page 46 for further detail).
For a minimum door panel thickness of 40 mm (1-5/8“ plus cladding).
Fire rated doors: Check with door manufacturer regarding the usage of additional
required intumescent material. Cover plates for doors without cladding are available
upon request – see page 33.
Square-corner cover plates are available upon request - see page 34.

F180
