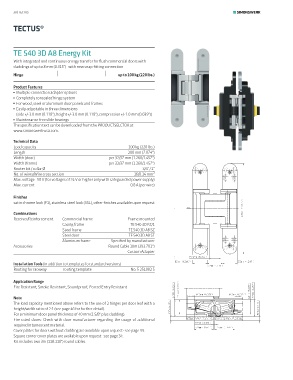

30 | TECTUS

       TECTUS®





       TE 540 3D A8 Energy Kit
       With integrated and continuous energy transfer for flush commercial doors with
       claddings of up to 8 mm (0.315“) - with new snap-fitting connection
       Hinge                                      up to 100 kg (220 lbs.)

       Product Features
         Multiple connection adapter options
         Completely concealed hinge system
         For wood, steel or aluminum door panels and frames
         Easily adjustable in three dimensions
         (side +/- 3.0 mm (0.118“), height +/- 3.0 mm (0.118“), compression +/- 1.0 mm (0.039“))
         Maintenance-free slide bearings
       The specification text can be downloaded from the PRODUCTSELCTOR at
       www.simonswerk-usa.com.

       Technical Data
       Load capacity                                   100 kg (220 lbs.)
       Length                                         200 mm (7.874“)
       Width (door)                           per 32/37 mm (1.260/1.457“)
       Width (frame)                          per 32/37 mm (1.260/1.457“)
       Router bit / collar Ø                                 3/4“ / 1“
       No. of wires/Wire cross section                   16/0.14 mm²
       Max. voltage  50 V (for voltages of 24 V or higher only with safeguarded power supply)
       Max. current                                    0.8 A (per wire)

       Finishes
       satin chrome look (F1), stainless steel look (SSL), other finishes available upon request

       Combinations
       Receiver/Reinforcement   Commercial frame      Frame mounted
                           Casing frame                TE 540 3D FZ/1
                           Steel frame                 TE 540 3D A8 SZ
                           Steel door                  TE 540 3D A8 ST
                           Aluminum frame      Specified by manufacturer
       Accessories                            Round Cable 10m (393.701“)
                                                      Custom Adapter

       Installation Tools (in addition to templates for standard versions)
       Routing for raceway    routing template          No. 5 251082 5

       Application Range
       Fire Resistant, Smoke Resistant, Soundproof,  Forced Entry Resistant

       Note
       The load capacity mentioned above refers to the use of 2 hinges per door leaf with a
       height/width ratio of 2:1 (see page 46 for further detail).
       For a minimum door panel thickness of 40 mm (1-5/8“ plus cladding).
       Fire  rated  doors:  Check  with  door  manufacturer  regarding  the  usage  of  additional
       required intumescent material.
       Cover plates for doors without cladding are available upon request - see page 33.
       Square-corner cover plates are available upon request - see page 34.
       Kit includes two 3m (118.110“) round cables.
