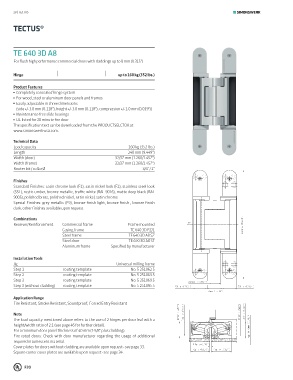

TECTUS®

TE 640 3D A8
For flush high performance commercial doors with claddings up to 8 mm (0.315“)

Hinge up to 160 kg (352 lbs.)

Product Features
Completely concealed hinge system
For wood, steel or aluminum door panels and frames
Easily adjustable in three dimensions
(side +/- 3.0 mm (0.118“), height +/- 3.0 mm (0.118“), compression +/- 1.0 mm (0.039“))
Maintenance-free slide bearings
UL listed for 20 minute fire door
The specification text can be downloaded from the PRODUCTSELCTOR at
www.simonswerk-usa.com.

Technical Data
Load capacity 160 kg (352 lbs.)
Length 240 mm (9.449“)
Width (door) 32/37 mm (1.260/1.457“)
Width (frame) 32/37 mm (1.260/1.457“)
Router bit / collar Ø 3/4“ / 1“

Finishes
Standard Finishes: satin chrome look (F1), satin nickel look (F2), stainless steel look
(SSL), rustic umber, bronze metallic, traffic white (RAL 9016), matte deep black (RAL
9005), polished brass, polished nickel, satin nickel, satin chrome
Special Finishes: grey metallic (F9), bronze finish light, bronze finish , bronze finish
dark, other finishes available upon request
Combinations
Receiver/Reinforcement Commercial frame Frame mounted
Casing frame TE 640 3D FZ/1
Steel frame TE 640 3D A8 SZ
Steel door TE 640 3D A8 ST
Aluminum frame Specified by manufacturer

Installation Tools
Jig Universal milling frame
Step 1 routing template No. 5 251062 5
Step 2 routing template No. 5 251063 5
Step 3 routing template No. 5 251069 5
Step 3 (without cladding) routing template No. 5 251095 5

Application Range
Fire Resistant, Smoke Resistant, Soundproof, Forced Entry Resistant

Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf with a
height/width ratio of 2:1 (see page 46 for further detail).
For a minimum door panel thickness of 40 mm (1-5/8“ plus cladding).
Fire rated doors: Check with door manufacturer regarding the usage of additional
required intumescent material.
Cover plates for doors without cladding are available upon request - see page 33.
Square-corner cover plates are available upon request - see page 34.

F20
