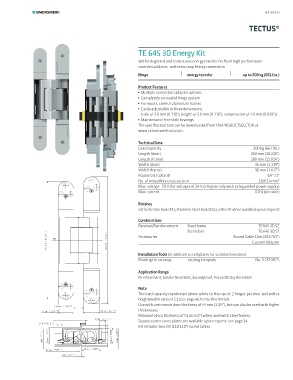

TECTUS | 23

TECTUS®

TE 645 3D Energy Kit
With integrated and continuous energy transfer for flush high performance
commercial doors - with new snap-fitting connection
Hinge energy transfer up to 300 kg (661 lbs.)

Product Features
Multiple connection adapter options
Completely concealed hinge system
For wood , steel or aluminum frames
Easily adjustable in three dimensions
(side +/- 3.0 mm (0.118“), height +/- 3.0 mm (0.118“), compression +/- 1.0 mm (0.039“))
Maintenance-free slide bearings
The specification text can be downloaded from the PRODUCTSELCTOR at
www.simonswerk-usa.com.

Technical Data
Load capacity 300 kg (661 lbs.)
Length (door) 260 mm (10.236“)
Length (frame) 280 mm (11.024“)
Width (door) 34 mm (1.339“)
Width (frame) 36 mm (1.417“)
Router bit / collar Ø 3/4“ / 1“
No. of wires/Wire cross section 16/0.14 mm²
Max. voltage 50 V (for voltages of 24 V or higher only with safeguarded power supply)
Max. current 0.8 A (per wire)

Finishes
satin chrome look (F1), stainless steel look (SSL), other finishes available upon request

Combinations
Receiver/Reinforcement Steel frame TE 645 3D SZ
Steel door TE 645 3D ST
Accessories Round Cable 10m (393.701“)
Custom Adapter

Installation Tools (in addition to templates for standard versions)
Routing for raceway routing template No. 5 251082 5

Application Range
Fire Resistant, Smoke Resistant, Soundproof, Forced Entry Resistant
Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf with a
height/width ratio of 2:1 (see page 46 for further detail).
Use with a minimum door thickness of 44 mm (1 3/4“), but can also be used with higher
thicknesses.
Minimum door thickness of 51 mm (2“) when used with steel frames.
Square-corner cover plates are available upon request - see page 34.
Kit includes two 3m (118.110“) round cables.
