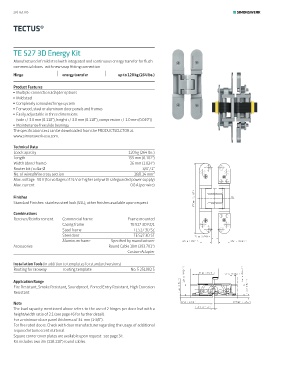

20 | TECTUS

TECTUS®

TE 527 3D Energy Kit
Manufactured of mild steel with integrated and continuous energy transfer for flush
commercial doors - with new snap-fitting connection
Hinge energy transfer up to 120 kg (264 lbs.)

Product Features
Multiple connection adapter options
Mild steel
Completely concealed hinge system
For wood, steel or aluminum door panels and frames
Easily adjustable in three dimensions
(side +/- 3.0 mm (0.118“), height +/- 3.0 mm (0.118“), compression +/- 1.0 mm (0.039“))
Maintenance-free slide bearings
The specification text can be downloaded from the PRODUCTSELCTOR at
www.simonswerk-usa.com.

Technical Data
Load capacity 120 kg (264 lbs.)
Length 155 mm (6.102“)
Width (door/ frame) 26 mm (1.024“)
Router bit / collar Ø 3/4“ / 1“
No. of wires/Wire cross section 16/0.14 mm²
Max. voltage 50 V (for voltages of 24 V or higher only with safeguarded power supply)
Max. current 0.8 A (per wire)

Finishes
Standard Finishes: stainless steel look (SSL), other finishes available upon request

Combinations
Receiver/Reinforcement Commercial frame Frame mounted
Casing frame TE 527 3D FZ/1
Steel frame TE 527 3D SZ
Steel door TE 527 3D ST
Aluminum frame Specified by manufacturer
Accessories Round Cable 10m (393.701“)
Custom Adapter

Installation Tools (in addition to templates for standard versions)
Routing for raceway routing template No. 5 251082 5

Application Range
Fire Resistant, Smoke Resistant, Soundproof, Forced Entry Resistant, High Corrosion
Resistant
Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf with a
height/width ratio of 2:1 (see page 46 for further detail).
For a minimum door panel thickness of 34 mm (1-3/8“).
For fire rated doors: Check with door manufacturer regarding the usage of additional
required intumescent material.
Square-corner cover plates are available upon request - see page 34.
Kit includes two 3m (118.110“) round cables.
