TECTUS | 15

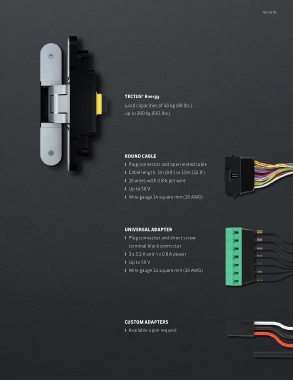

                                                     TECTUS® Energy

                                                     Load capacities of 40 kg (88 lbs.)
                                                     up to 300 kg (661 lbs.)









                                                     ROUND CABLE
                                                        〉 Plug connector and open ended cable
                                                        〉 Cable length: 3m (9.8‘) or 10m (32.8‘)
                                                        〉 16 wires with 0.8 A per wire
                                                        〉 Up to 50 V
                                                        〉 Wire gauge 14 square mm (26 AWG)







                                                     UNIVERSAL ADAPTER
                                                        〉  Plug connector and direct screw
                                                       terminal block connector

                                                        〉 3 x 3.2 A and 4 x 0.8 A power
                                                        〉 Up to 50 V
                                                        〉 Wire gauge 14 square mm (26 AWG)











                                                     CUSTOM ADAPTERS
                                                        〉 Available upon request
