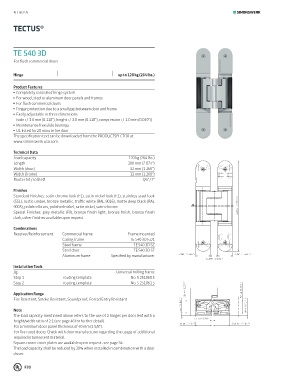

10 | TECTUS

TECTUS®

TE 540 3D
For flush commercial doors

Hinge up to 120 kg (264 lbs.)

Product Features
Completely concealed hinge system
For wood, steel or aluminum door panels and frames
For flush commercial doors
Finger protection due to a small gap between door and frame
Easily adjustable in three dimensions
(side +/- 3.0 mm (0.118“), height +/- 3.0 mm (0.118“), compression +/- 1.0 mm (0.039“))
Maintenance-free slide bearings
UL listed for 20 minute fire door
The specification text can be downloaded from the PRODUCTSELCTOR at
www.simonswerk-usa.com.

Technical Data
Load capacity 120 kg (264 lbs.)
Length 200 mm (7.874“)
Width (door) 32 mm (1.260“)
Width (frame) 32 mm (1.260“)
Router bit / collar Ø 3/4“ / 1“

Finishes
Standard Finishes: satin chrome look (F1), satin nickel look (F2), stainless steel look
(SSL), rustic umber, bronze metallic, traffic white (RAL 9016), matte deep black (RAL
9005), polished brass, polished nickel, satin nickel, satin chrome
Special Finishes: grey metallic (F9), bronze finish light, bronze finish, bronze finish
dark, other finishes available upon request

Combinations
Receiver/Reinforcement Commercial frame Frame mounted
Casing frame TE 540 3D FZ/1
Steel frame TE 540 3D SZ
Steel door TE 540 3D ST
Aluminum frame Specified by manufacturer

Installation Tools
Jig Universal milling frame
Step 1 routing template No. 5 251060 5
Step 2 routing template No. 5 251061 5

Application Range
Fire Resistant, Smoke Resistant, Soundproof, Forced Entry Resistant

Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf with a
height/width ratio of 2:1 (see page 46 for further detail).
For a minimum door panel thickness of 40 mm (1-5/8“).
For fire rated doors: Check with door manufacturer regarding the usage of additional
required intumescent material.
Square-corner cover plates are available upon request - see page 34.
The load capacity shall be reduced by 20% when installed in combination with a door
closer.

F20
