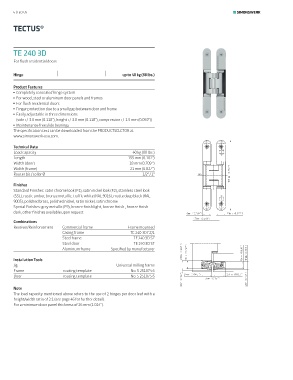

6 | TECTUS

TECTUS®

TE 240 3D
For flush residential doors

Hinge up to 40 kg (88 lbs.)

Product Features
Completely concealed hinge system
For wood, steel or aluminum door panels and frames
For flush residential doors
Finger protection due to a small gap between door and frame
Easily adjustable in three dimensions
(side +/- 3.0 mm (0.118“), height +/- 3.0 mm (0.118“), compression +/- 1.5 mm (0.059“))
Maintenance-free slide bearings
The specification text can be downloaded from the PRODUCTSELCTOR at
www.simonswerk-usa.com.

Technical Data
Load capacity 40 kg (88 lbs.)
Length 155 mm (6.102“)
Width (door) 18 mm (0.709 “)
Width (frame) 21 mm (0.827“)
Router bit / collar Ø 1/2“ / 1“

Finishes
Standard Finishes: satin chrome look (F1), satin nickel look (F2), stainless steel look
(SSL), rustic umber, bronze metallic, traffic white (RAL 9016), matte deep black (RAL
9005), polished brass, polished nickel, satin nickel, satin chrome
Special Finishes: grey metallic (F9), bronze finish light, bronze finish , bronze finish
dark, other finishes available upon request
Combinations
Receiver/Reinforcement Commercial frame Frame mounted
Casing frame TE 240 3D FZ/1
Steel frame TE 240 3D SZ
Steel door TE 240 3D ST
Aluminum frame Specified by manufacturer

Installation Tools
Jig Universal milling frame
Frame routing template No. 5 251074 6
Door routing template No. 5 251075 6

Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf with a
height/width ratio of 2:1 (see page 46 for further detail).
For a minimum door panel thickness of 26 mm (1.024“).
