4 | TECTUSTECTUS
4 |

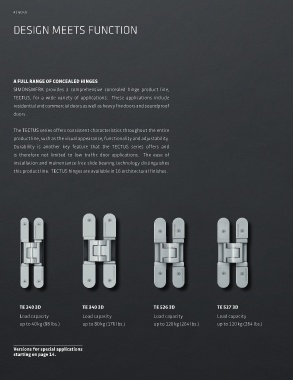

dESiGn MEETS FUnCTiOn

A FULL RANGE OF CONCEALED HINGES

SIMONSWERK provides a comprehensive concealed hinge product line,
TECTUS, for a wide variety of applications. These applications include
residential and commercial doors as well as heavy fire doors and soundproof
doors.

The TECTUS series offers consistent characteristics throughout the entire
product line, such as the visual appearance, functionality and adjustability.

Durability is another key feature that the TECTUS series offers and
is therefore not limited to low traffic door applications. The ease of
installation and mainentance-free slide bearing technology distinguishes
this product line. TECTUS hinges are available in 16 architectural finishes.

TE 240 3D TE 340 3D TE 526 3D TE 527 3D

Load capacity Load capacity Load capacity Load capacity
up to 40 kg (88 lbs.) up to 80 kg (176 lbs.) up to 120 kg (264 lbs.) up to 120 kg (264 lbs.)

Versions for special applications
starting on page 14.
