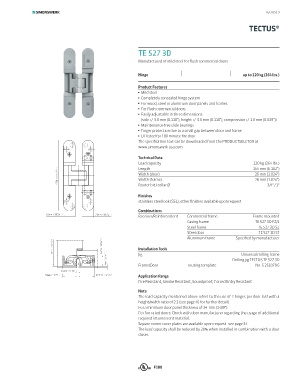

TECTUS | 9

TECTUS®

TE 527 3D
Manufactured of mild steel for flush commercial doors

Hinge up to 120 kg (264 lbs.)

Product Features
Mild steel
Completely concealed hinge system
For wood, steel or aluminum door panels and frames
For flush commercial doors
Easily adjustable in three dimensions
(side +/- 3.0 mm (0.118“), height +/- 3.0 mm (0.118“), compression +/- 1.0 mm (0.039“))
Maintenance-free slide bearings
Finger protection due to a small gap between door and frame
UL listed for 180 minute fire door
The specification text can be downloaded from the PRODUCTSELCTOR at
www.simonswerk-usa.com.
Technical Data
Load capacity 120 kg (264 lbs.)
Length 155 mm (6.102“)
Width (door) 26 mm (1.024“)
Width (frame) 26 mm (1.024“)
Router bit / collar Ø 3/4“ / 1“
Finishes
stainless steel look (SSL), other finishes available upon request
Combinations
Receiver/Reinforcement Commercial frame Frame mounted
Casing frame TE 527 3D FZ/1
Steel frame TE 527 3D SZ
Steel door TE 527 3D ST
Aluminum frame Specified by manufacturer

Installation Tools
Jig Universal milling frame
Drilling jig TECTUS TE 527 3D
Frame/Door routing template No. 5 251070 6

Application Range
Fire Resistant, Smoke Resistant, Soundproof, Forced Entry Resistant
Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf with a
height/width ratio of 2:1 (see page 46 for further detail).
For a minimum door panel thickness of 34 mm (1-3/8“).
For fire rated doors: Check with door manufacturer regarding the usage of additional
required intumescent material.
Square-corner cover plates are available upon request - see page 34.
The load capacity shall be reduced by 20% when installed in combination with a door
closer.

F180
