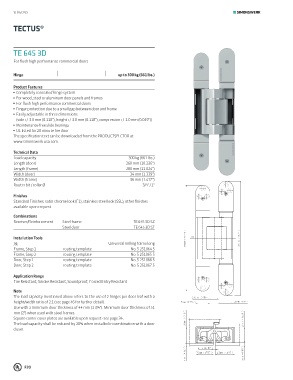

TECTUS®

TE 645 3D
For flush high performance commercial doors

Hinge up to 300 kg (661 lbs.)

Product Features
Completely concealed hinge system
For wood, steel or aluminum door panels and frames
For flush high performance commercial doors
Finger protection due to a small gap between door and frame
Easily adjustable in three dimensions
(side +/- 3.0 mm (0.118“), height +/- 3.0 mm (0.118“), compression +/- 1.0 mm (0.039“))
Maintenance-free slide bearings
UL listed for 20 minute fire door
The specification text can be downloaded from the PRODUCTSELCTOR at
www.simonswerk-usa.com.

Technical Data
Load capacity 300 kg (661 lbs.)
Length (door) 260 mm (10.236“)
Length (frame) 280 mm (11.024“)
Width (door) 34 mm (1.339“)
Width (frame) 36 mm (1.417“)
Router bit / collar Ø 3/4“ / 1“
Finishes
Standard Finishes: satin chrome look (F1), stainless steel look (SSL), other finishes
available upon request

Combinations
Receiver/Reinforcement Steel frame TE 645 3D SZ
Steel door TE 645 3D ST
Installation Tools
Jig Universal milling frame long
Frame, Step 1 routing template No. 5 251064 5
Frame, Step 2 routing template No. 5 251065 5
Door, Step 1 routing template No. 5 251066 5
Door, Step 2 routing template No. 5 251067 5

Application Range
Fire Resistant, Smoke Resistant, Soundproof, Forced Entry Resistant
Note
The load capacity mentioned above refers to the use of 2 hinges per door leaf with a
height/width ratio of 2:1 (see page 46 for further detail).
Use with a minimum door thickness of 44 mm (1 3/4“). Minimum door thickness of 51
mm (2“) when used with steel frames.
Square-corner cover plates are available upon request - see page 34.
The load capacity shall be reduced by 20% when installed in combination with a door
closer.
