16 | TECTUS

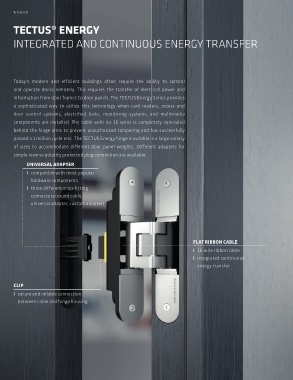

TECTUS® ENERGY

inTEGRATEd And COnTinUOUS EnERGY TRAnSFER

Today‘s modern and efficient buildings often require the ability to control

and operate doors remotely. This requires the transfer of electrical power and
information from door frames to door panels. The TECTUS Energy Series provides
a sophisticated way to utilize this technology when card readers, access and
door control systems, electrified locks, monitoring systems, and mulitmedia
components are installed. The cable with its 16 wires is completely concealed
behind the hinge arms to prevent unauthorized tampering and has successfully
passed a 1 million cycle test. The TECTUS Energy hinge is avilable in a large variety

of sizes to accommodate different door panel weights. Different adapters for
simple reverse polarity protected plug connection are available.
UNIVERSAL ADAPTER
〉 compatible with most popular
hardware components
〉 three different snap-fitting
connectors (round cable,
universal adapter, custom adapter)

FLAT RIBBON CABLE
〉 16-wire ribbon cable
〉 integrated continuous
energy transfer

CLIP
〉 secure and reliable connection
between cable and hinge housing
