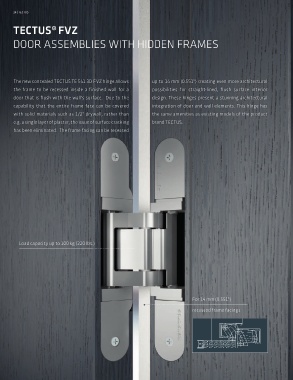

       TECTUS® FVZ


       dOOR ASSEMBLiES WiTH HiddEn FRAMES








       The new concealed TECTUS TE 541 3D FVZ hinge allows      up to 14 mm (0.551“) creating even more architectural

       the frame to be recessed inside a finished wall for a    possibilities for straight-lined, flush surface interior
       door that is flush with the wall‘s surface.  Due to the   design. These hinges present a stunning architectural
       capability that the entire frame face can be covered     integration of door and wall elements. This hinge has
       with solid materials such as 1/2“ drywall, rather than   the same amenities as existing models of the product
       e.g. a single layer of plaster, the issue of surface cracking   brand TECTUS.
       has been eliminated.  The frame facing can be recessed




























         Load capacity up to 100 kg (220 lbs.)












                                                                                 For 14 mm (0.551“)

                                                                                 recessed frame facings







                                                                                     14  (0.551“)
