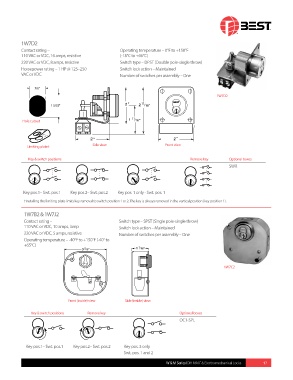

P. 17
1W7D2
Contact rating – Operating temperature – 0°F to +150°F
110 VAC or VDC, 16 amps, resistive (-18°C to +66°C)
220 VAC or VDC, 8 amps, resistive Switch type – DPST (Double pole-single throw)
Horsepower rating – 1 HP @ 125–250 Switch lock action – Maintained
VAC or VDC Number of switches per assembly – One
7/8”
1W7D2
1 5/32”
Hole cutout
1W7J2—Two switches
Limiting plate† Side view Front view
Key & switch positions Remove key Optional box es
SWR
Key pos.1– Swt. pos.1 Key pos.2– Swt. pos.2 Key pos. 1 only - Swt. pos. 1
†Installing the limiting plate limits key removal to switch position 1 or 2. The key is always removed in the vertical position (key position 1).
1W7B2 & 1W7J2
Contact rating – Switch type – SPST (Single pole-single throw)
110 VAC or VDC, 10 amps, lamp Switch lock action – Maintained
220 VAC or VDC, 5 amps, resistive Number of switches per assembly – One
Operating temperature – -40°F to +150°F (-40° to
+65°C)
1W7C2
Front (inside) view Side (inside) view
Key & switch positions Remove key Optional box es
OC1-SPL
Key pos.1– Swt. pos.1 Key pos.2– Swt. pos.2 Key pos. 3 only
Swt. pos. 1 and 2
W & M Series IDH MAX & Electromechanical Locks 17
®
