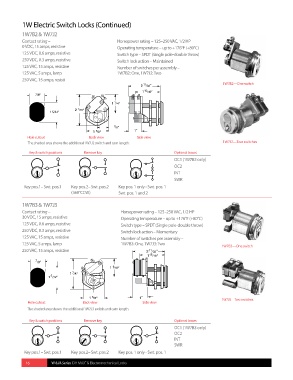

1W Electric Switch Locks (Continued)
1W7B2 & 1W7J2
Contact rating – Horsepower rating – 125–250 VAC, 1/2 HP
0 VDC, 15 amps, resistive Operating temperature – up to +176°F (+80°C)
125 VDC, 0.6 amps, resistive Switch type – SPDT (Single pole-double throw)
250 VDC, 0.3 amps, resistive Switch lock action – Maintained
125 VAC, 15 amps, resistive Number of switches per assembly –
125 VAC, 5 amps, lamp 1W7B2: One, 1W7J2: Two
250 VAC, 15 amps, resisti
1W7B2—One switch
7/8”
1 5/32”
Hole cutout Back view Side view
The shaded area shows the additional 1W7J2 switch and cam length. 1W7J2—Two switches
Key & switch positions Remove key Optional box es
OC1 (1W7B2 only)
OC2
INT
SWR
Key pos.1– Swt. pos.1 Key pos.2– Swt. pos.2 Key pos. 1 only - Swt. pos. 1
(360°CCW) Swt. pos. 1 and 2
1W7B3 & 1W7J3
Contact rating – Horsepower rating – 125–250 VAC, 1/2 HP
30 VDC, 15 amps, resistive Operating temperature – up to +176°F (+80°C)
125 VDC, 0.6 amps, resistive Switch type – SPDT (Single pole-double throw)
250 VDC, 0.3 amps, resistive Switch lock action – Momentary
125 VAC, 15 amps, resistive Number of switches per assembly –
125 VAC, 5 amps, lamp 1W7B3: One, 1W7J3: Two
1W7B3—One switch
250 VAC, 15 amps, resistive
7 /8”
5
1 /32”
1W7J3—Two switches
Hole cutout Back view Side view
The shaded area shows the additional 1W7J3 switch and cam length.
Key & switch positions Remove key Optional box es
OC1 (1W7B3 only)
OC2
INT
SWR
Key pos.1– Swt. pos.1 Key pos.2– Swt. pos.2 Key pos. 1 only - Swt. pos. 1
