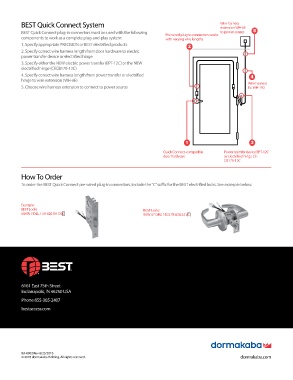

BEST Quick Connect System Wire harness
extension WH-6E
BEST Quick Connect plug-in connectors must be used with the following Pre-wired plug-in connectors works to power source 5
components to work as a complete plug-and-play system: with varying wire lengths
1. Specify appropriate PRECISION or BEST electrified products 2
2. Specify correct wire harness length from door hardware to electric
power transfer device or electrified hinge
3. Specify either the NEW electric power transfer (EPT-12C) or the NEW
electrified hinge (CECB179-12C)
4. Specify correct wire harness length from power transfer or electrified 4
hinge to wire extension (WH-6E)
5. Choose wire harness extension to connect to power source Wire harness
Ex. WH-192

1 3

Quick Connect-compatible Power transfer device EPT-12C
door hardware or electrified hinge CE-
CB179-12C

How To Order
To order the BEST Quick Connect pre-wired plug-in connectors, include the “C” suffix for the BEST electrified locks. See example below.

Example:
BEST Locks BEST Locks
45HW 7 DEL 14H 626 RH DSC 9KW 37 DEU 15CS TK 626 24 VC

6161 East 75th Street
Indianapolis, IN 46250 USA
Phone 855-365-2407

bestaccess.com

BA-0002 Rev 6/25/2018
