P. 15

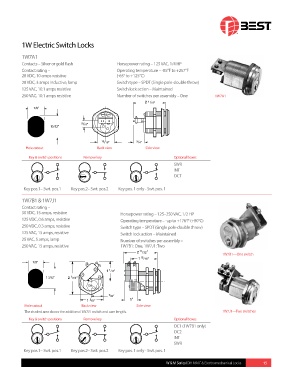

1W Electric Switch Locks
1W7A1
Contacts – Silver or gold flash Horsepower rating – 125 VAC, 1/4 HP
Contact rating – Operating temperature – -85°F to +257°F
28 VDC, 10 amps resistive (-65° to +125°C)
28 VDC, 3 amps inductive, lamp Switch type – SPDT (Single pole-double throw)
125 VAC, 10.1 amps resistive Switch lock action – Maintained
250 VAC, 10.1 amps resistive Number of switches per assembly – One 1W7A1
7/8”
15/32”
Hole cutout Back view Side view
Key & switch positions Remove key Optional box es
SWR
INT
OCT
Key pos.1– Swt. pos.1 Key pos.2– Swt. pos.2 Key pos. 1 only - Swt. pos. 1
1W7B1 & 1W7J1
Contact rating –
30 VDC, 15 amps, resistive Horsepower rating – 125–250 VAC, 1/2 HP
125 VDC, 0.6 amps, resistive Operating temperature – -up to +176°F (+80°C)
250 VDC, 0.3 amps, resistive Switch type – SPDT (Single pole-double throw)
125 VAC, 15 amps, resistive Switch lock action – Maintained
25 VAC, 5 amps, lamp Number of switches per assembly –
250 VAC, 15 amps, resistive 1W7B1: One, 1W7J1: Two
1W7B1—One switch
7/8”
1 5/32”
Hole cutout Back view Side view
The shaded area shows the additional 1W7J1 switch and cam length. 1W7J1—Two switches
Key & switch positions Remove key Optional box es
OC1 (1W7B1 only)
OC2
INT
SWR
Key pos.1– Swt. pos.1 Key pos.2– Swt. pos.2 Key pos. 1 only - Swt. pos. 1
W & M Series IDH MAX & Electromechanical Locks 15
®
