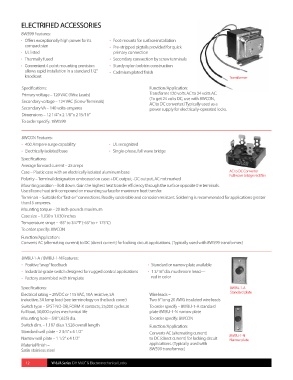

ELECTRIFIED ACCESSORIES

8W599 Features:
• Offers exceptionally high power for its • Foot-mounts for surface installation
compact size • Pre-stripped pigtails provided for quick
• UL listed primary connection
• Thermally fused • Secondary connection by screw terminals
• Convenient 4 point mounting provision • Sturdy nylon bobbin construction
allows rapid installation in a standard 1/2” • Cadmium plated finish
knockout Transformer

Specifications: Function/Application:
Primary voltage – 120 VAC (Wire Leads) Transforms 120 volts AC to 24 volts AC.
Secondary voltage – 124 VAC (Screw Terminals) (To get 24 volts DC, use with 8WCON,
AC to DC converter.) Typ i cal ly used as a
Secondary VA – 140 volts-amperes power supply for electrically-op er at ed locks.
Dimensions – 12 1/4” x 2 1/8” x 2 15/16”
To order specify: 18W599

8WCON Features:
• 400 Ampere surge capability • UL recognized
• Electrically isolated base • Single-phase, full wave bridge
Specifications:
Average forward current – 25 amps
Case – Plastic case with an electrically isolated aluminum base AC to DC Converter
Full wave bridge rectifier
Polarity – Terminal designation embossed on case: +DC output, -DC output, AC not marked
Mounting position – Bolt down. Gain the highest heat transfer ef fi cien cy through the surface op po site the terminals.
Use silicone heat sink compound on mounting surface for max i mum heat transfer.
Terminals – Suitable for “fast-on” connections. Readily solderable and corrosion resistant. Soldering is recommended for applications greater
than15 amperes.
Mounting torque – 20 inch-pounds maximum
Case size – 1.030 x 1.030 inches
Temperature range – -85° to 347°F (-65 ° to + 175°C)
To order specify: 8WCON
Function/Application:
Converts AC (alternating current) to DC (direct current) for locking circuit applications. (Typ i cal ly used with 8W599 transformer.)

8WBU-1-A / 8WBU-1-N Features:
• Positive “snap” feedback • Standard or narrow plate available
• Industrial-grade switch designed for rugged control applications • 1 3/16” dia. mushroom head—
• Factory assembled with trimplate red in color
Specifications: 8WBU-1-A
Electrical rating – 28VDC or 115 VAC, 10A resistive, 5A Wire leads – Standard plate
in duc tive, 3A lamp load (see ter mi nol o gy on the back cover) Two 6” long 20 AWG insulated wire leads
Switch type – SPST-NO-DB, FORM-X contacts, 25,000 cycles at To order specify – 8WBU-1-A stan dard
full load, 50,000 cycles me chan i cal life plate 8WBU-1-N narrow plate
Mounting hole – 5/8” (.625) dia. To order specify: 8WCON
Switch dim. – 1.187 dia.x 1.528 overall length Function/Application:
Standard wall plate – 2 3/4” x 4 1/2” Converts AC (alternating current)
Narrow wall plate – 1 1/2” x 4 1/2” to DC (direct current) for locking circuit 8WBU-1-N
Narrow plate
Material/finish – applications. (Typ i cal ly used with
Satin stainless steel 8W599 transformer.)

12 W & M Series IDH MAX & Electromechanical Locks
®
