P. 18

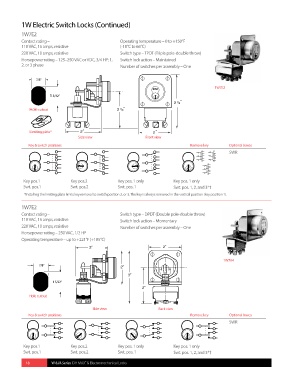

1W Electric Switch Locks (Continued)
1W7E2
Contact rating – Operating temperature – 0 to +150°F
110 VAC, 15 amps, resistive (-18°C to 66°C)
220 VAC, 10 amps, resistive Switch type – TPDT (Triple pole-double throw)
Horsepower rating – 125–250 VAC or VDC, 3/4 HP; 1, Switch lock action – Maintained
2, or 3 phase Number of switches per assembly – One
7/8”
1W7E2
1 5/32”
Hole cutout
Limiting plate*
Side view Front view
Key & switch positions Remove key Optional box es
SWR
Key pos.1 Key pos.2 Key pos. 1 only Key pos. 1 only
Swt. pos.1 Swt. pos.2 Swt. pos. 1 Swt. pos. 1, 2, and 3*†
*Installing the limiting plate limits key removal to switch position 2, or 3. The key is always removed in the vertical position (key position 1).
1W7E2
Contact rating – Switch type – DPDT (Double pole-double throw)
110 VAC, 15 amps, resistive Switch lock action – Momentary
220 VAC, 10 amps, resistive Number of switches per assembly – One
Horsepower rating – 250 VAC, 1/2 HP
Operating temperature – up to +221°F (+105°C)
1W7K4
7/8”
1 5/32”
Hole cutout
Side view Back view
Key & switch positions Remove key Optional box es
SWR
Key pos.1 Key pos.2 Key pos. 1 only Key pos. 1 only
Swt. pos.1 Swt. pos.2 Swt. pos. 1 Swt. pos. 1, 2, and 3*†
®
18 W & M Series IDH MAX & Electromechanical Locks
