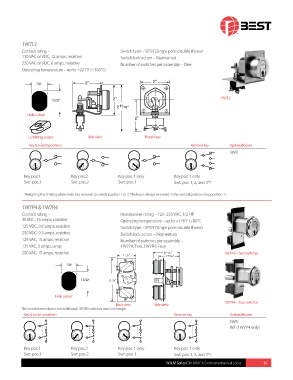

1W7L2
Contact rating – Switch type – SPDT (Single pole-double throw)
110 VAC or VDC, 12 amps, resistive Switch lock action – Maintained
220 VAC or VDC, 6 amps, resistive Number of switches per assembly – One
Operating temperature – up to +221°F (+105°C)

7/8”

1W7L2
1 5/32”

Hole cutout

Limiting plate† Side view Front view
Key & switch positions Remove key Optional box es
SWR

Key pos.1 Key pos.2 Key pos. 1 only Key pos. 1 only
Swt. pos.1 Swt. pos.2 Swt. pos. 1 Swt. pos. 1, 2, and 3*†

†Installing the limiting plate limits key removal to switch position 1 or 2. The key is always removed in the vertical position (key position 1).

1W7P4 & 1W7R4
Contact rating – Horsepower rating – 125–250 VAC, 1/2 HP
30 VDC, 15 amps, resistive Operating temperature – up to +176°F (+80°C
125 VDC, 0.6 amps, resistive Switch type – SPDT (Single pole-double throw)
250 VDC, 0.3 amps, resistive Switch lock action – Momentary
125 VAC, 15 amps, resistive Number of switches per assembly –
125 VAC, 5 amps, lamp 1W7P4: Two, 1W7R4: Four
250 VAC, 15 amps, resistive 2 5 /16 " 1W7P4—two switches
1 1 /2 " 1 29 /32 "
7/8”

1 5/32” 2 7 /8 "

Hole cutout
1W7R4—four switches
Back view Side view
The shaded area shows the additional 1W7R4 switches and cam length.
Key & switch positions Remove key Optional box es
SWR
INT (1W7P4 only)

Key pos.1 Key pos.2 Key pos. 1 only Key pos. 1 only
Swt. pos.1 Swt. pos.2 Swt. pos. 1 Swt. pos. 1, 2, and 3*†
W & M Series IDH MAX & Electromechanical Locks 19
®
